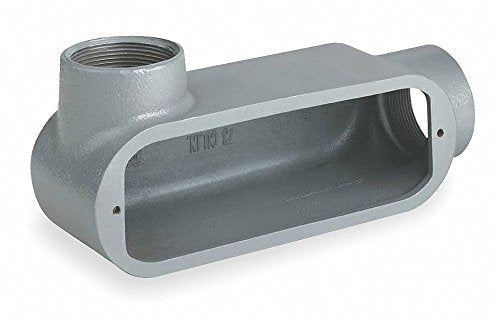

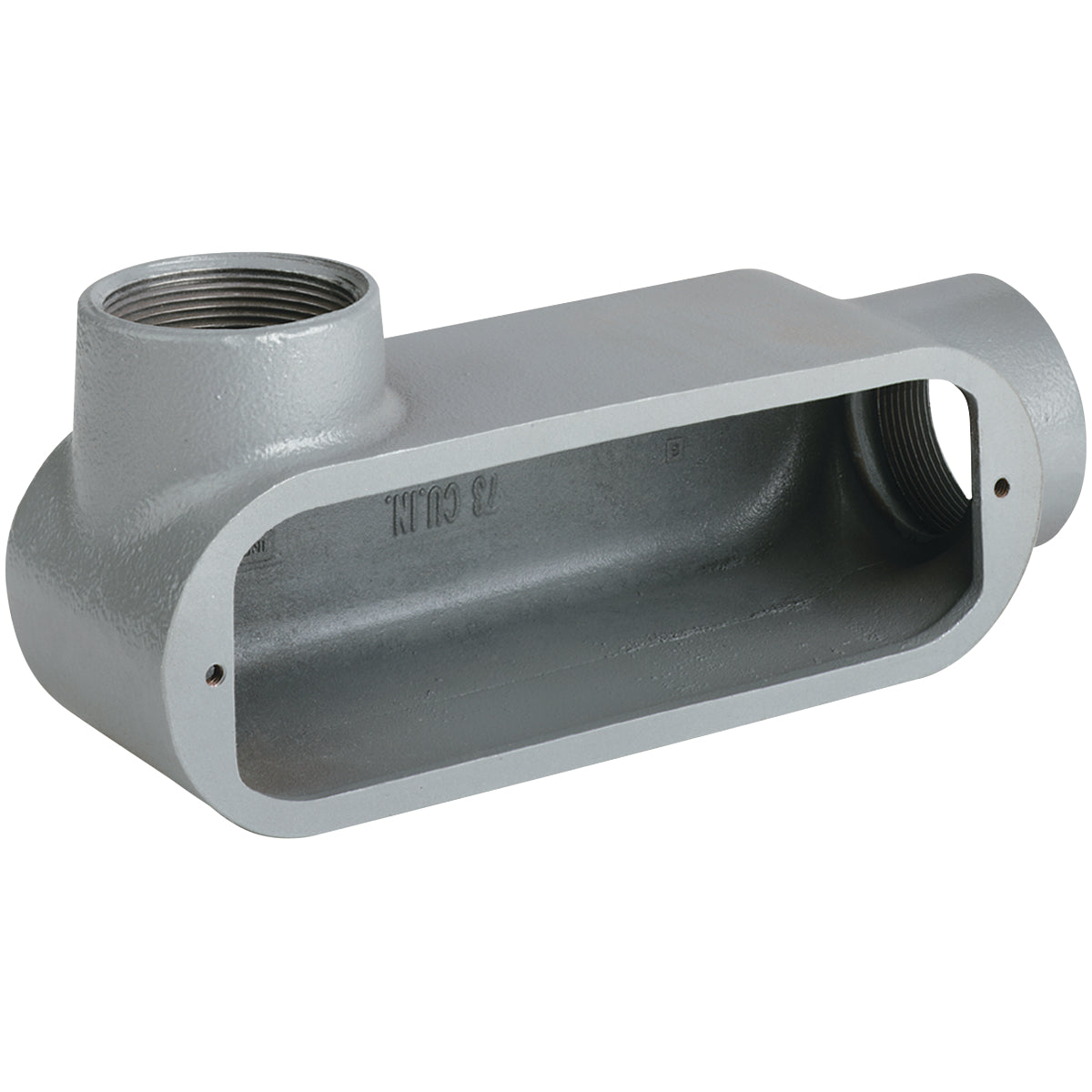

Killark OLL-2M Conduit Outlet Body, Iron, LL, 3/4 in.

Product Description

The KILLARK OLL-2M is a conduit outlet body made of iron with an LL shape and a 3/4 inch hub size. It provides access to conductors for pulling, splicing, and maintenance, and is threaded for rigid conduit and IMC. The body capacity is 7 cu in. It is suitable for use in hazardous locations.

• Features tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

This Killark conduit body is raintight when used with gasketed covers and interchangeable with competitive products.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLL-2M
• Country of Origin: IN

Technical Specifications

• Brand: Killark
• Manufacturer: CAI - HUBBELL KILLARK
• Item Model Number: OLL-2M
• Shape: LL
• Width: 2.188 in
• Finish: Powder Epoxy Paint
• Height: 1.625 in
• Length: 5.375 in
• Series: O Series
• Hub Size: 3/4"
• Includes: Stainless Steel Screws
• Material: Iron
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Body Style: LL
• Trade Size: 3/4 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Finish Type: Powder Epoxy Paint
• Hub Pattern: LL
• Thread Type: NPT
• For Use With: IMC, RMC
• Body Capacity: 7 cu in
• Overall Width: 2 3/16 in
• Thread Gender: Female
• Number of Hubs: 2
• Overall Height: 1 5/8 in
• Overall Length: 5 3/8 in
• Connection Type: Threaded
• Compatible Cover: OL-20M
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 7 cu. in.
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: 90 Degrees
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 3/4"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: LL
• Conduit Outlet Body Capacity: 7.0 cu in
• Conduit Outlet Body Hub Size: 3/4 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 3/4 in
• Conduit Outlet Body Hub Style: Threaded
• Sub Brand: DURALOY 5
• Standard: UL File No. E3397|CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b) Class I Div 2, 502.10, 503.10
