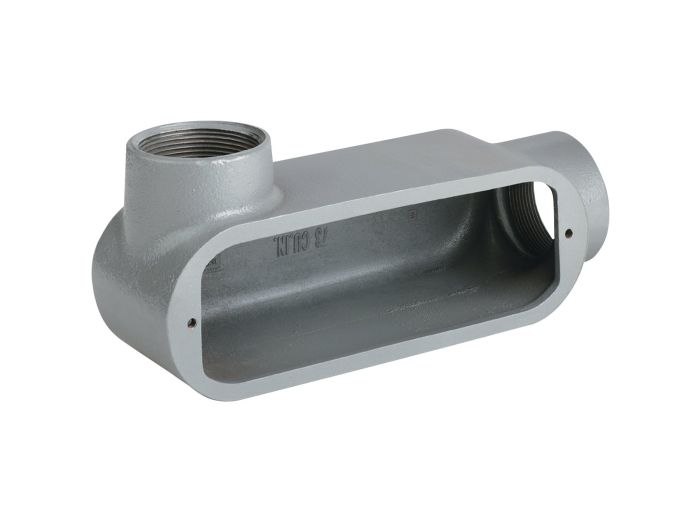

Killark OLL-0M 4 inches LL Hub, Iron O Series Conduit Body

Product Description

The KILLARK OLL-0M 4" LL Hub, Iron O Series Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is raintight when used with gasketed covers and features malleable iron suitable for use in concrete. This conduit body is threaded for rigid conduit and IMC, with a volume of 324 cu. in.

• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.
• Interchangeable with competitive products.

Product Highlights

Provides access to conductors for maintenance. Features raintight construction and is suitable for use in concrete. Interchangeable with competitive products.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLL-0M

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OLL-0M
• Color: Gray
• Material: Iron
• Series: O Series
• Type: Conduit Body
• UPC: 783936480619
• Height: 8.25 in
• Hub Size: 4"
• Length: 19 in
• Width: 11 in
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Part Number: OLL0M
• Brand: Killark
• Manufacturer Part Number: OLL-0M
• Manufacturer: Killark
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 4in. LL COND BDY FE
• Style: Threaded Iron
• Shape: LL
• Number of Hubs: 2
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 4 "
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
