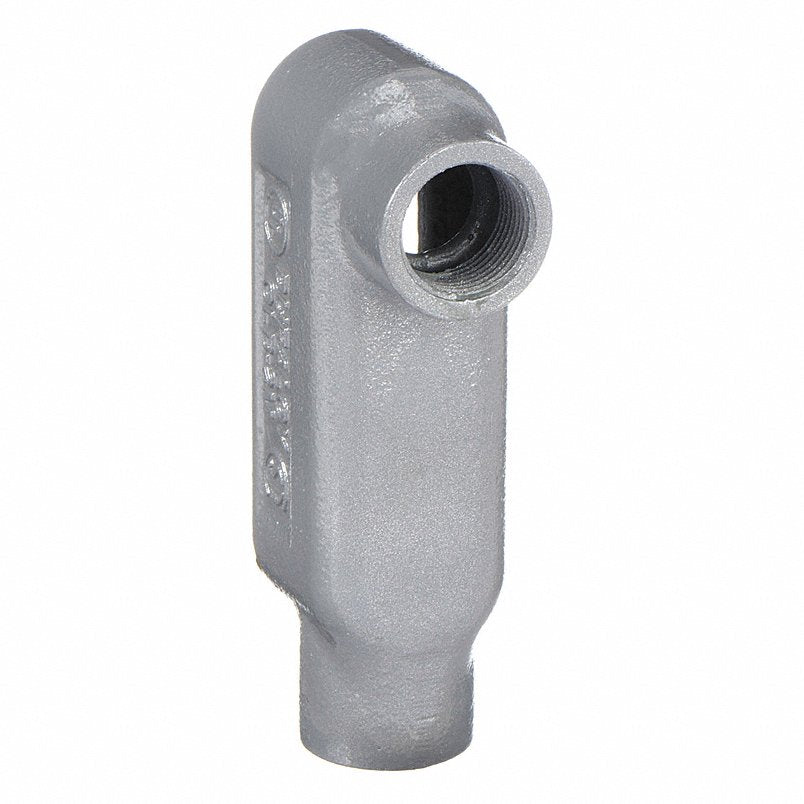

Killark OLB-3M LB Hub Iron O-Series Conduit Body 1 inches

Product Description

The KILLARK OLB-3M is a 1" LB hub, iron O-series conduit body. It provides access to conductors for pulling, splicing, and maintenance. Features tapered threaded hubs (NPT) and is raintight when used with gasketed covers. Constructed from malleable iron, it is suitable for use in concrete.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Malleable iron suitable for use in concrete

Product Highlights

This Killark conduit body is suitable for hazardous locations and features a tri-coat finish for enhanced durability.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLB-3M
• Country of Origin: India

Technical Specifications

• Hub Size: 1 in
• Material: Iron
• Series: O Series
• Body Style: LB
• Body Type: Conduit Outlet Body
• Connection Type: Threaded
• Finish: Powder Epoxy Paint
• For Use With: IMC, RMC
• Hazardous Location: Yes
• Compatible Cover: OL-30M
• Thread Size: 1 in
• Thread Type: NPT
• Number of Hubs: 2
• Overall Width: 2 in
• Overall Height: 3 in
• Overall Length: 5 in
• Connection Orientation: 90 Degrees
• Trade Size: 1 in
• Form: Form 7
• Standards: CSA, UL
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Hub Style: Threaded
• Body Capacity: 12 cu in
• Type: LB Type
• Capacity: 12 cu. in.
