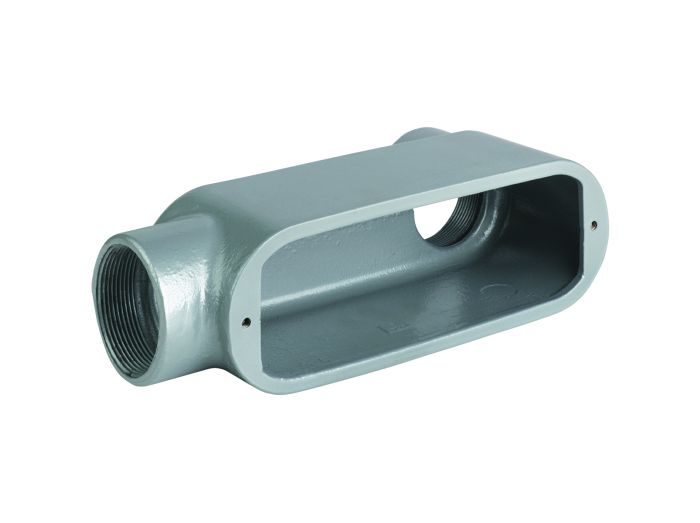

Killark OLB-0M LB Hub, Iron O Series Conduit Body 4 inches

Product Description

The KILLARK OLB-0M is a 4" LB Hub, Iron O Series Conduit Body, raintight when used with gasketed covers. Constructed from malleable iron, it is suitable for use in concrete. Features include stainless steel screws on stamped and cast covers and tapered threaded hubs (NPT).

• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.
• Interchangeable with competitive products.

Product Highlights

Compact conduit body with high durability and secure installation. Ideal for providing access to conductors for pulling, splicing, and maintenance.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OLB-0M

Technical Specifications

• Catalog Number: OLB-0M
• Color: Gray
• Material: Iron
• Series: O Series
• UPC: 783936480510
• CSA File Number: LR11852
• UL File Number: E3397
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Hub Size: 4"
• Number of Hubs: 2
• Capacity: 324 cu-in
• Connection Type: Threaded
• Finish: Tri-Coated
• Type: Type LB
• Application: To provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduit
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL File No. E3397, CSA File No. LR11852, Federal Specification W-C-586D/A-A 50563, NEC 501.10(b) Class I Div 2, 502.10, 503.10
• Brand: Killark
• Manufacturer: Killark
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Style: Threaded Iron
• Shape: LB
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Trade Size: 4 "
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
