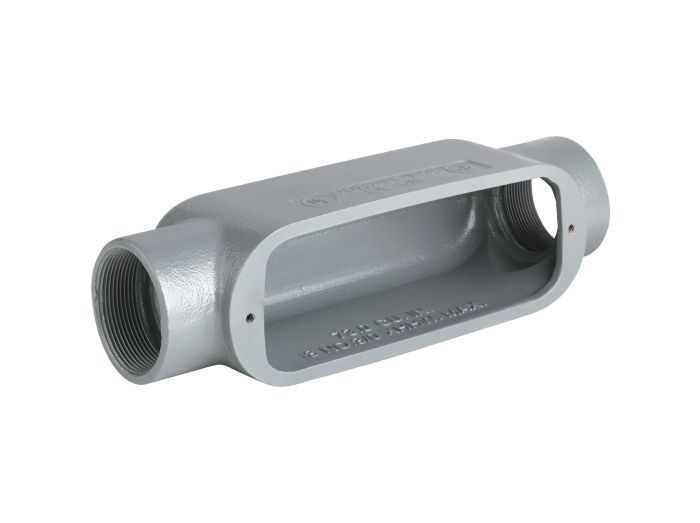

Killark OC-9M Conduit Body 3-1/2 inches C Hub, Iron O Series

Product Description

The KILLARK OC-9M conduit body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. The malleable iron construction is suitable for use in concrete. This conduit body is raintight when used with gasketed covers and features tapered threaded hubs (NPT).

• Raintight when used with gasketed covers.
• Malleable iron suitable for use in concrete.
• Interchangeable with competitive products.

Product Highlights

This iron conduit body with a 3-1/2" hub size is suitable for hazardous locations and provides easy access to conductors.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OC-9M
• Country of Origin: India

Technical Specifications

• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Catalog Number: OC-9M
• Color: Gray
• Material: Electrostatically Applied Powder Coated Over Electro Zinc and Chr
• Series: O Series
• Type: Conduit Body
• UPC: 783936480237
• Height: 5.5 in
• Hub Size: 3-1/2"
• Length: 19.25 in
• Width: 8.5 in
• CSA File Number: LR11852
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Hub Pattern: C
• Capacity: 290.0 Cubic Inch
• Number of Hubs: 4
• Brand: KILLARK
• Item: Conduit Bdy,3-1/2",C,Iron
• Finish: Powder Epoxy Paint
• Finish Type: Powder Epoxy Paint
• Hazardous Location Rating: Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• UL File Number: E3397
• Manufacturer: Killark
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 3 1/2in. C COND BDY FE
• Style: Threaded Iron
• Shape: C
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 3-1/2 "
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 290 cu. in.
