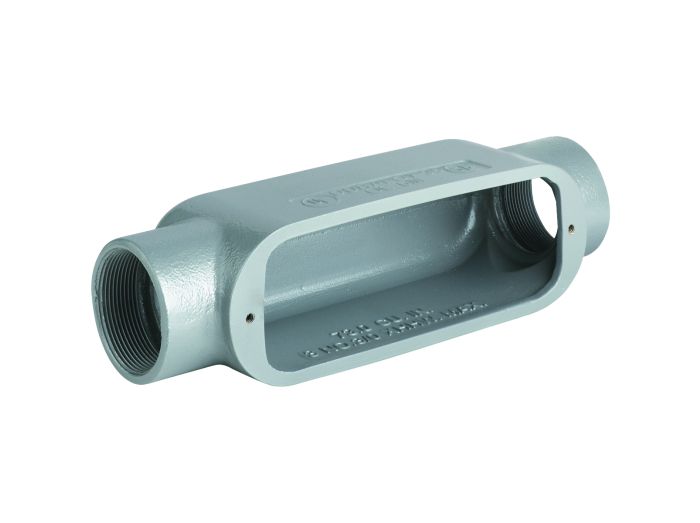

Killark OC-8M Conduit Body, 181 cu. in. Capacity, C Body

Product Description

The KILLARK OC-8M conduit outlet body provides access to conductors for pulling, splicing, and maintenance. This iron O series conduit body has a 3" hub size and a capacity of 181 cu in. It is threaded for rigid conduit and IMC and suitable for use in hazardous locations.

• Hazardous Location
• Set Screw Hubs
• Raintight when used with gasketed covers.

Product Highlights

The OC-8M is raintight when used with gasketed covers and malleable iron suitable for use in concrete.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OC-8M
• Country of Origin: India

Technical Specifications

• Item: Conduit Outlet Body
• Type: Conduit Body
• Color: Gray
• Shape: C
• Width: 7.000 in
• Height: 5.5 in
• Length: 16.5 in
• Series: O Series
• Hub Size: 3 in
• Material: Iron
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Trade Size: 3 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Hub Pattern: C
• Thread Size: 3 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 181 cu in
• Overall Width: 7 in
• Thread Gender: Female
• Number of Hubs: 2
• Overall Height: 5 1/2 in
• Overall Length: 16 1/2 in
• Connection Type: Threaded
• Compatible Cover: OL-80M
• Special Features: Set Screw Hubs
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Straight
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: C
• Hazardous Location Rating: Class I, Division 2, Class I, Zone 2
• Conduit Outlet Body Capacity: 181.0 cu in
• Conduit Outlet Body Hub Size: 3 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 3 in
• Conduit Outlet Body Hub Style: Threaded
• Catalog Number: OC-8M
• UPC: 783936480220
• Capacity: 181 cu-in
• Product Series: O
• Manufacturer: Killark
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 3in. C COND BDY FE
• Style: Threaded Iron
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
