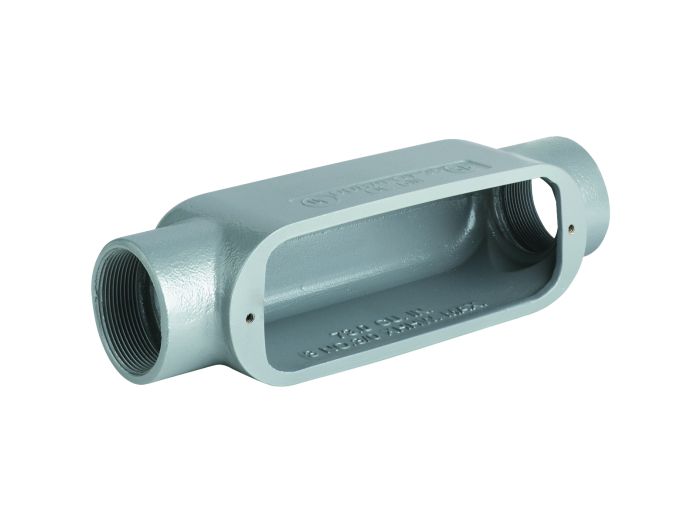

Killark OC-7M Conduit Body, 153 cu. in Capacity, C Body

Product Description

The KILLARK OC-7M conduit body with 153 cu. in capacity and C body style provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. Suitable for hazardous locations when installed according to NEC Articles.

• Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Set Screw Hubs
• Raintight when used with gasketed covers.

Product Highlights

This iron O series conduit body has tapered threaded hubs (NPT) and is raintight when used with gasketed covers. Malleable iron makes it suitable for use in concrete.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OC-7M
• Country of Origin: India

Technical Specifications

• Item: Conduit Outlet Body
• Type: Conduit Body
• Shape: C
• Width: 7.250 in
• Finish: Powder Coated
• Height: 6.25 in
• Length: 15.75 in
• Series: O
• Hub Size: 2 1/2 in
• Material: Iron
• Back Type: Flat
• Body Type: Conduit Outlet Body
• Hub Style: Threaded
• Standards: CSA, UL
• Trade Size: 2 1/2 in
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Finish Type: Powder Epoxy Paint
• Hub Pattern: C
• Thread Size: 2 1/2 in
• Thread Type: NPT
• For Use With: IMC, RMC
• Style of Hub: Threaded
• Body Capacity: 153 cu in
• Overall Width: 7 1/4 in
• Thread Gender: Female
• Number of Hubs: 2
• Overall Height: 6 1/4 in
• Overall Length: 15 3/4 in
• Connection Type: Threaded
• Compatible Cover: OL-78M
• Hazardous Location: Yes
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Connection Orientation: Straight
• Compatible Conduit Type: IMC, RMC
• Conduit Outlet Hub Size: 2-1/2\"
• Conduit Outlet Body Type: Conduit Outlet Body
• Conduit Outlet Body Style: C
• Hazardous Location Rating: Class I, Division 2, Class I, Zone 2
• Conduit Outlet Body Capacity: 153.0 cu in
• Conduit Outlet Body Hub Size: 2 1/2 in
• Conduit Outlet Body Material: Iron
• Compatible Conduit Trade Size: 2 1/2 in
• Conduit Outlet Body Hub Style: Threaded
• Catalog Number: OC-7M
• UPC: 783936480213
• Brand: HUBBELL KILLARK
• MPN: OC-7M
• Item Length: 15.800
• Depth: 6.800
• Manufacturer: Killark
• Product Series: O
• Description: DURALOY 2 1/2in. C COND BDY
• Style: Threaded Iron
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Capacity: 153 cu-in
