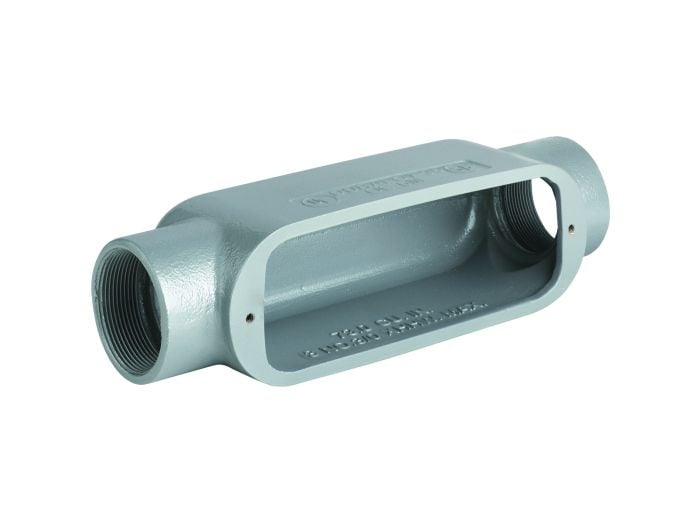

Killark OC-6M 2 inches C Hub, Iron O Series Conduit Body

Product Description

The Killark OC-6M 2" C Hub, Iron O Series Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is threaded for rigid conduit and IMC. Features tapered threaded hubs (NPT) and is raintight when used with gasketed covers. Malleable iron makes it suitable for use in concrete and is interchangeable with competitive products.

• Provides access to conductors for pulling, splicing, and maintenance
• Threaded for rigid conduit and IMC
• Raintight when used with gasketed covers
• Volume is 70 cu. in.

Product Highlights

This Killark conduit body is ideal for providing access to conductors in rigid conduit and IMC systems, ensuring durability and easy maintenance.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OC-6M
• Country of Origin: India

Technical Specifications

• Catalog Number: OC-6M
• Manufacturer: Killark, a Hubbell affiliate
• Brand: Killark
• Sub Brand: DURALOY 5
• Country of Origin: India
• Made in USA: No
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Color: Gray
• Finish: Powder Epoxy Paint
• Hub Size: 2"
• Material: Iron
• Special Features: Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 70 cu. in.
• Standard: UL, CSA
• UPC: 783936480206
• GTIN: 00783936480206
• Item Type: Conduit Body
• Length: 13.875 Inch
• Width: 8.25 Inch
• Height: 5.75 Inch
• Configuration: C
• Cover Type: Stamped and Cast Stainless Steel Screw-On
• Hub Location: Straight
• Number of Hubs: 2
• Installation: Threaded (IMC/Rigid)
• Form Type: Form 5
• Used On: Rigid Conduit/IMC
• Applicable Standard: Federal Specification W-C-586D/A-A 50563
• Series: O Series
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Product Series: O
• Family Series: Killark Conduit Outlet Bodies, O Series
• Description: DURALOY 2in. C COND BDY FE
• Style: Threaded Iron
• Shape: C
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 2 "
• Composition: Duraloy Iron
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
• Capacity: 70 cu-in
• Finish Type: Tri-Coated
