Killark OC-5 Conduit Body 1-1/2 in

Product Description

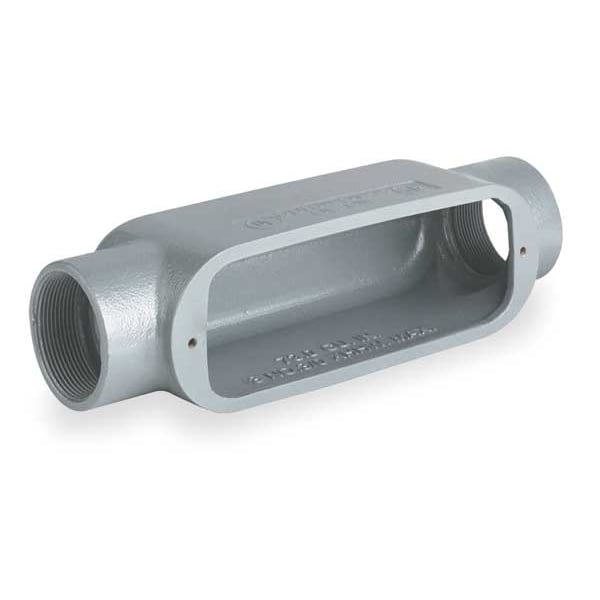

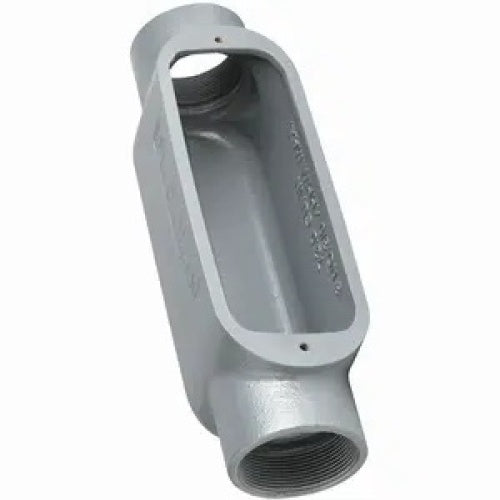

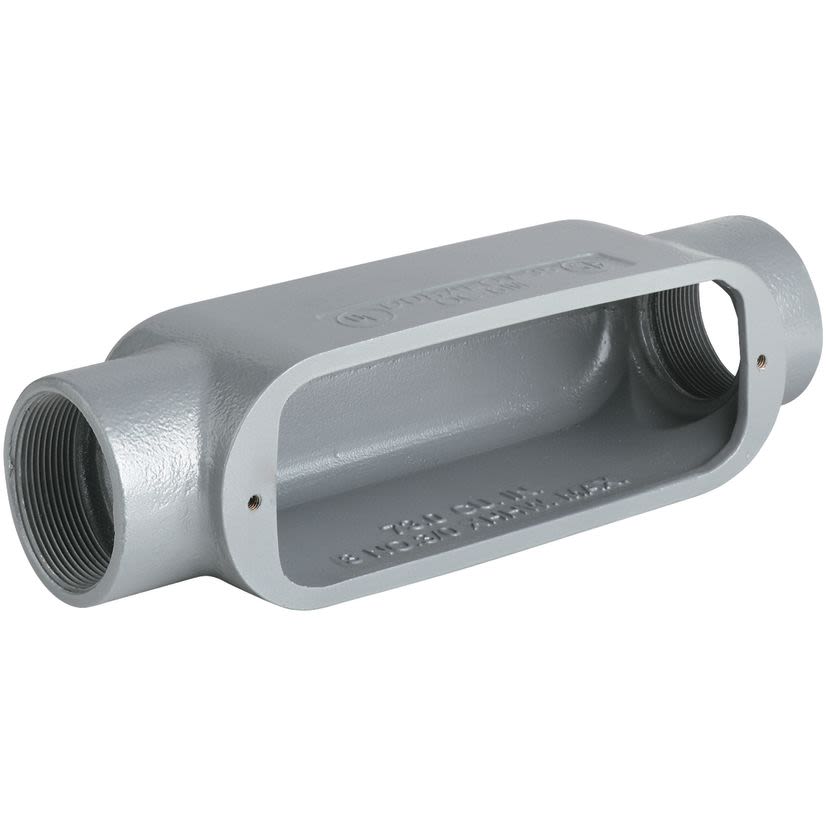

The Hubbell Killark OC-5 Duraloy® conduit body, from the O Series, features a Type C design with a 1-1/2 in hub. Constructed from aluminum with a powder-coated gray finish, it measures 9-1/4 in L x 2-5/8 in W x 2-3/4 in H and has a capacity of 36 cu-in. It is designed to provide access to conductors for pulling, splicing, and maintenance.

• Tapered threaded hubs (NPT)
• Raintight when used with gasketed covers
• Interchangeable with competitive products

Product Highlights

This Killark conduit body is raintight when used with gasketed covers and is suitable for wet locations. It is made from copper-free aluminum and features electrostatically applied powder coating.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: OC-5
• Country of Origin: Mexico

Technical Specifications

• Capacity: 36 cu-in
• Color: Gray
• Connection Type: Tapered NPT
• Country of Origin: Mexico
• Finish: Powder Coated
• Form: 85
• Hub Size: 1-1/2 in
• Manufacturer: Hubbell
• Material: Aluminum
• Number of Hubs: 2
• Package Type: EACH
• Type / Style: Type C
• Product Color: Gray
• Component: Fittings
• Size: 1-1/2"
• Sub Component: Conduit Body
• Compatible Conduit Trade Size: 1 1/2 in
• Trade Size: 1 1/2 in
• Thread Size: 1 1/2 in
• Item: Conduit Outlet Body
• Conduit Outlet Body Type: Conduit Outlet Body
• Hazardous Location: Yes
• Series: O Series
• Conduit Outlet Body Material: Copper Free Aluminum
• Conduit Outlet Body Style: C
• Includes: Stainless Steel Screws
• Conduit Outlet Body Hub Style: Threaded
• For Use With: IMC, RMC
• Back Type: Flat
• Standards: CSA, UL
• Body Style: C
• Body Capacity: 36 cu in
• Body Type: Conduit Outlet Body
• Compatible Conduit Type: IMC, RMC
• Compatible Cover: OL-450
• Thread Gender: Female
• Shape: C
• Connection Orientation: Straight
• Thread Type: NPT
• Hub Style: Threaded
• Hub Pattern: C
• UL File Number: E3397
• Finish Type: Powder Epoxy Paint
• Application: To provide access to conductors for pulling, splicing, and maintenance.
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• CSA File Number: LR11852
