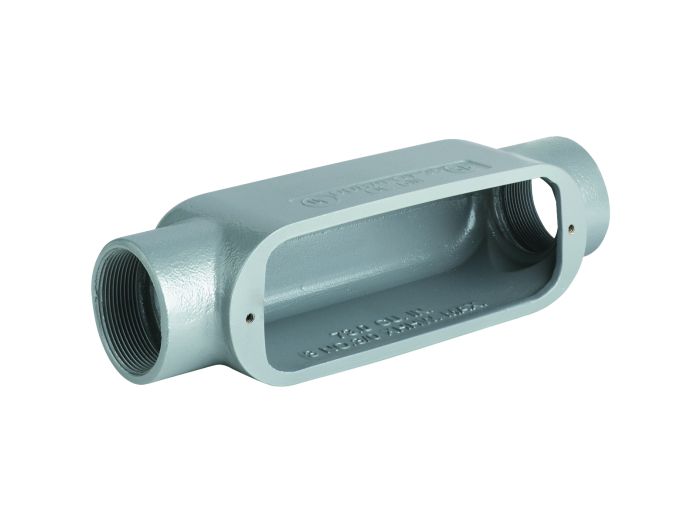

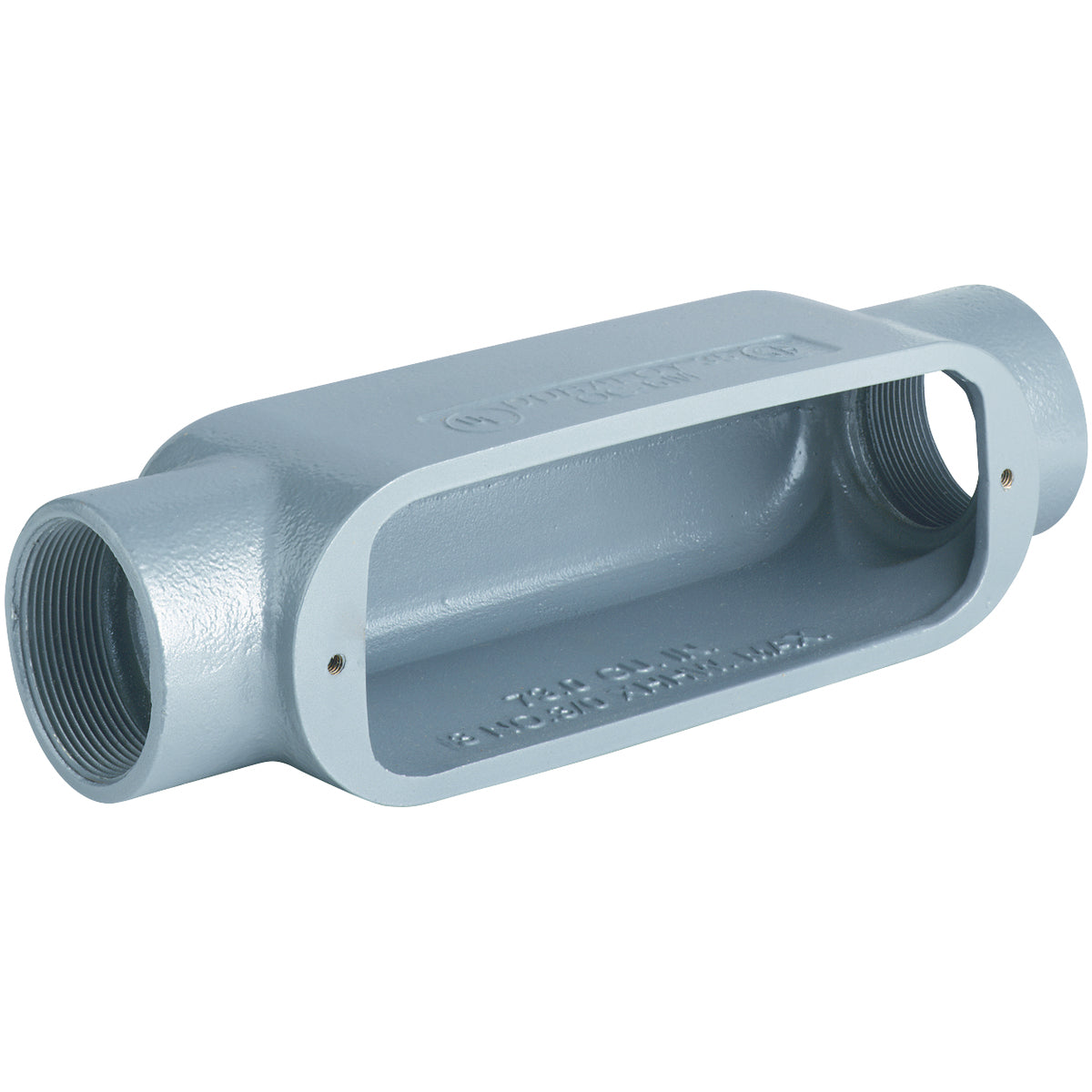

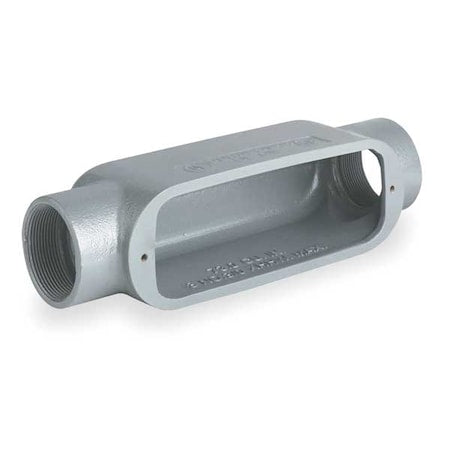

Killark OC-2M O Series C Hub Conduit Body 3/4 in

Product Description

Killark OC-2M is an O Series C-type conduit body that provides access to conductors for pulling, splicing, and maintenance. Constructed of malleable iron (Duraloy) with a powder epoxy paint finish, it features tapered NPT threaded hubs and a 7 cubic-inch capacity. The body is threaded for rigid conduit and IMC and is raintight when used with gasketed covers for indoor and outdoor installations.

• Malleable iron (Duraloy) construction with powder epoxy paint finish; suitable for use in concrete
• Two tapered NPT threaded 3/4 in hubs; threaded for rigid conduit and IMC; connection type: threaded
• 7.0 cu in body capacity; overall dimensions 7 in x 2 in x 2 in; raintight when used with gasketed covers

Product Highlights

3/4 in tapered NPT hubs; 7 cu in capacity; UL and CSA listed

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: OC-2M
• Country of Origin: India

Technical Specifications

• Brand: Killark
• Manufacturer Part Number: OC-2M
• Series: O Series
• Model/Item: Conduit Outlet Body (Type C)
• Form: 85
• Material: Malleable iron (Duraloy)
• Finish: Powder epoxy paint
• Hub Size: 3/4 in
• Hub Style: Tapered NPT threaded hubs
• Thread Type: NPT
• Number of Hubs: 2
• Body Capacity: 7.0 cu in
• Dimensions: 7 in x 2 in x 2 in
• Length: 7 in
• Width: 2 in
• Height: 2 in
• Connection Type: Threaded
• Connection Orientation: Straight
• Compatible Conduit: Rigid conduit, IMC
• Compatible Cover: OL-20M
• Includes: Stainless steel screws (on stamped and cast covers noted in sources)
• Raintight: Yes (when used with gasketed covers)
• Hazardous Location Rating: Suitable for hazardous location applications when installed according to applicable NEC articles
• Standards/Approvals: UL, CSA
• Item Type: Conduit Body
• Body Style: C
• Back Type: Flat
• Number of Hubs Detail: Two-hub C-shaped conduit body
• Country of Origin: India
• Net Weight: 0.972 lb
• Gross Weight: 1 lb
• UPC: 783936480169
• GTIN: 00783936480169
