Killark LR37 BODY CONDUIT 1IN FORM 7 11CU-IN IRON 2

Product Description

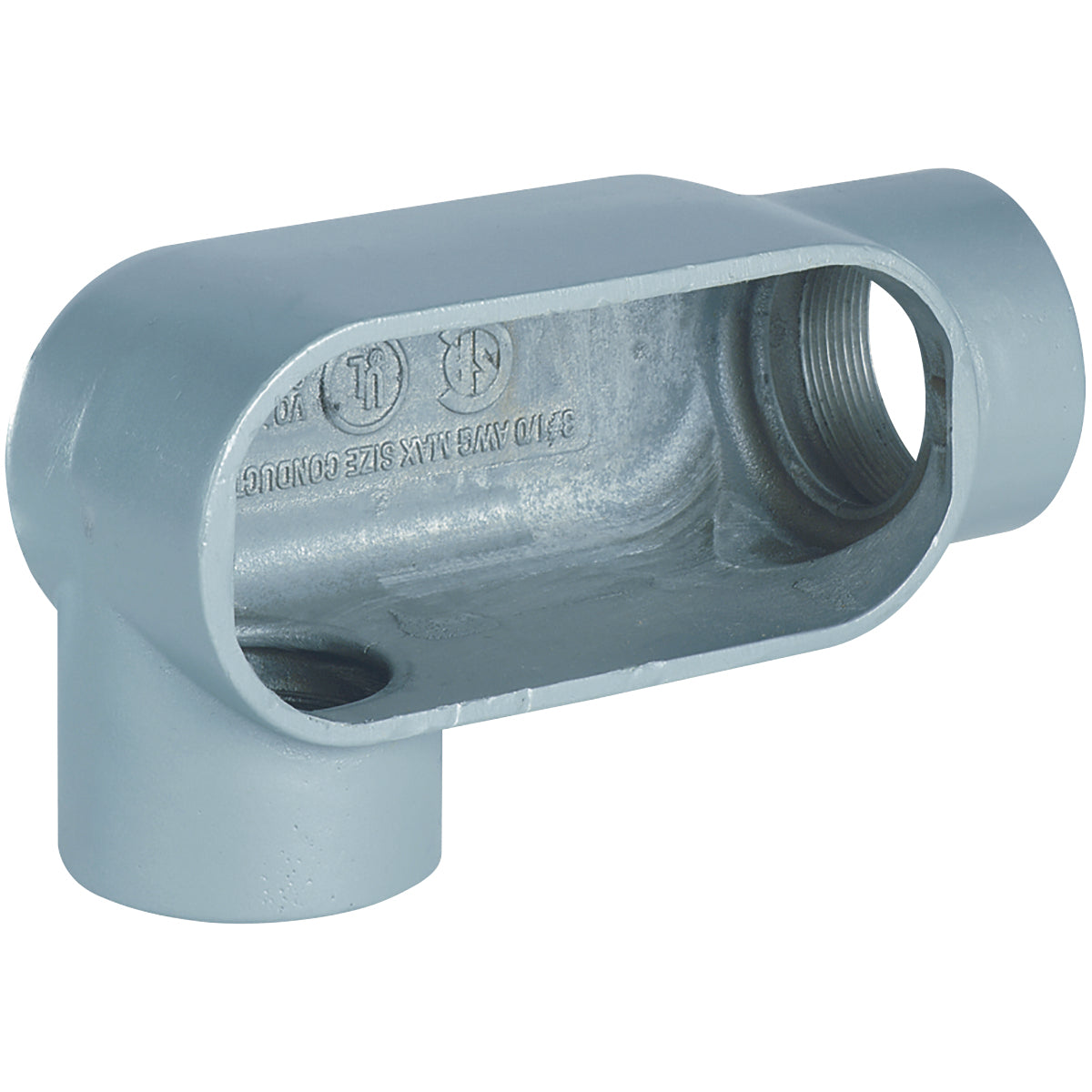

The Killark LR37 is a conduit body designed for use where access to conductors is needed for pulling, splicing, and maintenance. This model features a one inch hub and is ideal for installations requiring reliable performance in hazardous locations. Constructed from iron with a tri-coated finish, it ensures durability and protection against corrosion.

• Form 7 design for compact insulation solutions
• NEMA 3 enclosure for optimal protection
• Available in 11 cubic inches capacity

Product Highlights

The LR37 conduit body is engineered for ease of installation and use, designed to be compatible with standard rigid conduit systems. Its innovative features enhance functionality in demanding environments.

Product Information

Standard Information

• Brand: Killark
• Manufacturer: Hubbell

Technical Specifications

• Form: Form 7
• Type: Type LR
• Color: Gray
• Finish: Tri-Coated
• Capacity: 11 cu-in
• Hub Size: 1 in
• Enclosure: NEMA 3
• Dimensions: 6-5/16 in L x 1-7/8 in W x 3-1/16 in H
• Material: Iron
• Special Features: Suitable for wet locations when used with gaskets; UL Listed and CSA Certified for interchangeability
