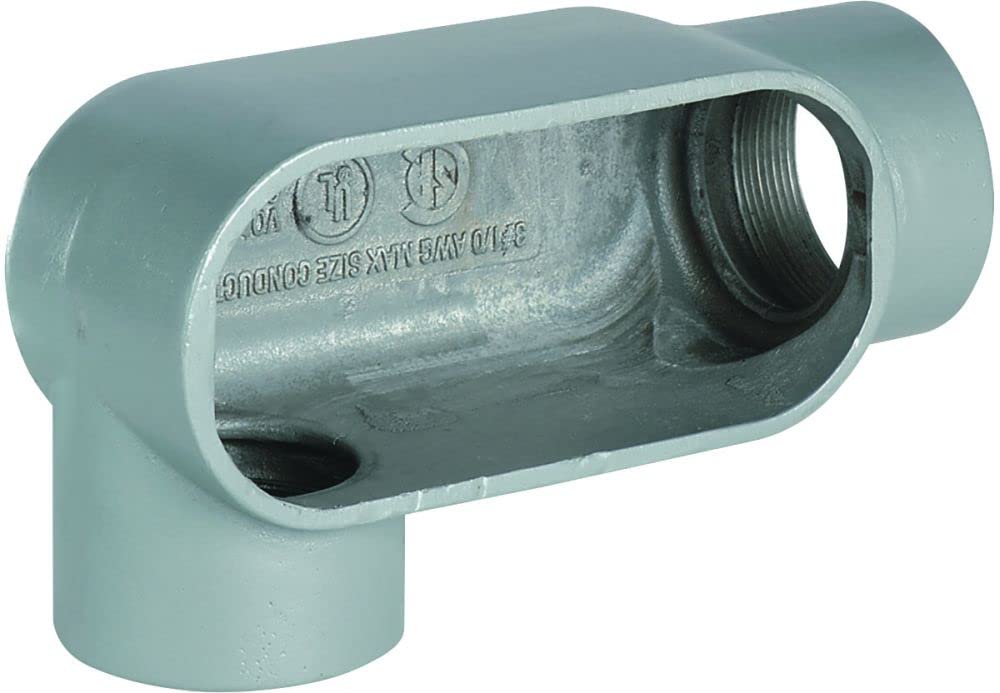

Killark LR27 conduit body Duraloy iron 3/4 in hub 7 cubic inch

Product Description

The Killark LR27 is a conduit body made from Duraloy iron featuring a three-quarter inch hub. This conduit body is designed to provide access to conductors for pulling, splicing, and maintenance. With dimensions of five and three-eighths inches in length, one and eleven-sixteenths inches in width, and two and five-eighths inches in height, this product offers a volume capacity of seven cubic inches.

• Compatible with IMC and RMC conduit types
• UL Listed and CSA Certified
• Tri-coat finish enhances durability

Product Highlights

The Killark LR27 conduit body is suitable for wet locations when used with gasketed covers and features a unique spring clip design for easy installation.

Product Information

Standard Information

• Brand: Killark
• MPN: LR27

Technical Specifications

• Material: Iron
• Form: 7
• Hub Size: 3/4 inch
• Body Capacity: 7 cubic inches
• Dimensions: 5-3/8 inches (L) x 1-11/16 inches (W) x 2-5/8 inches (H)
• Connection Type: Threaded
• Color: Gray
• Finish: Tri-Coated
• Standards: UL, CSA
