Killark LL17 BODY CONDUIT 1/2IN FORM 7 4CU-IN IRON

Product Description

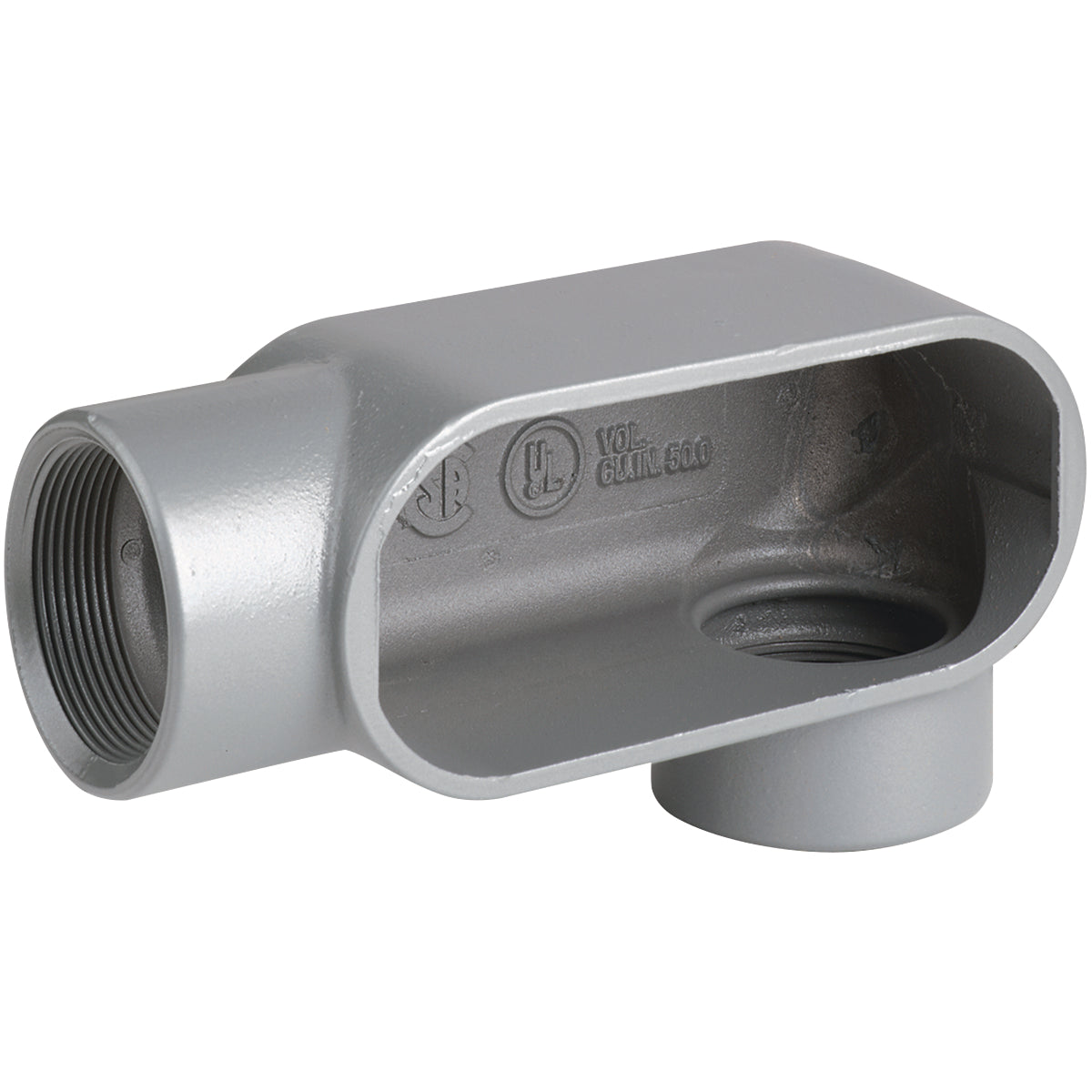

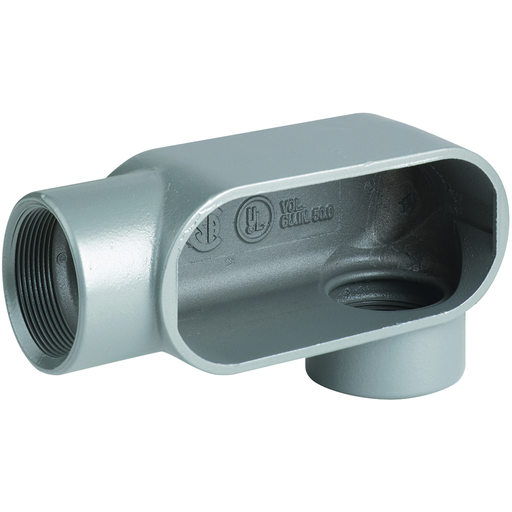

The Killark LL17 is a conduit body designed for effective management of electrical conduits. Featuring a hub size of one half inches and a form seven design, it supports easy access to conductors, facilitating tasks such as pulling, splicing, and maintenance. The LL17 is constructed from iron and has a tri-coated finish, which adds durability and resistance to environmental factors.

• Two hubs for versatile installation
• NEMA 3 rated for environmental protection
• Compatible with threaded rigid conduit systems

Product Highlights

The Killark LL17 conduit body is ideal for industrial applications where reliable access to wiring is essential. Its innovative design features smooth integral wire bushings that protect cables during installation, ensuring long-term performance.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part No: LL17

Technical Specifications

• Form: Form 7
• Type: Type LL
• Color: Gray
• Finish: Tri-Coated
• Capacity: 4 cu-in
• Hub Size: 1/2 in
• Enclosure: NEMA 3
• Dimensions: 4-11/16 in L x 1-7/16 in W x 2-5/16 in H
