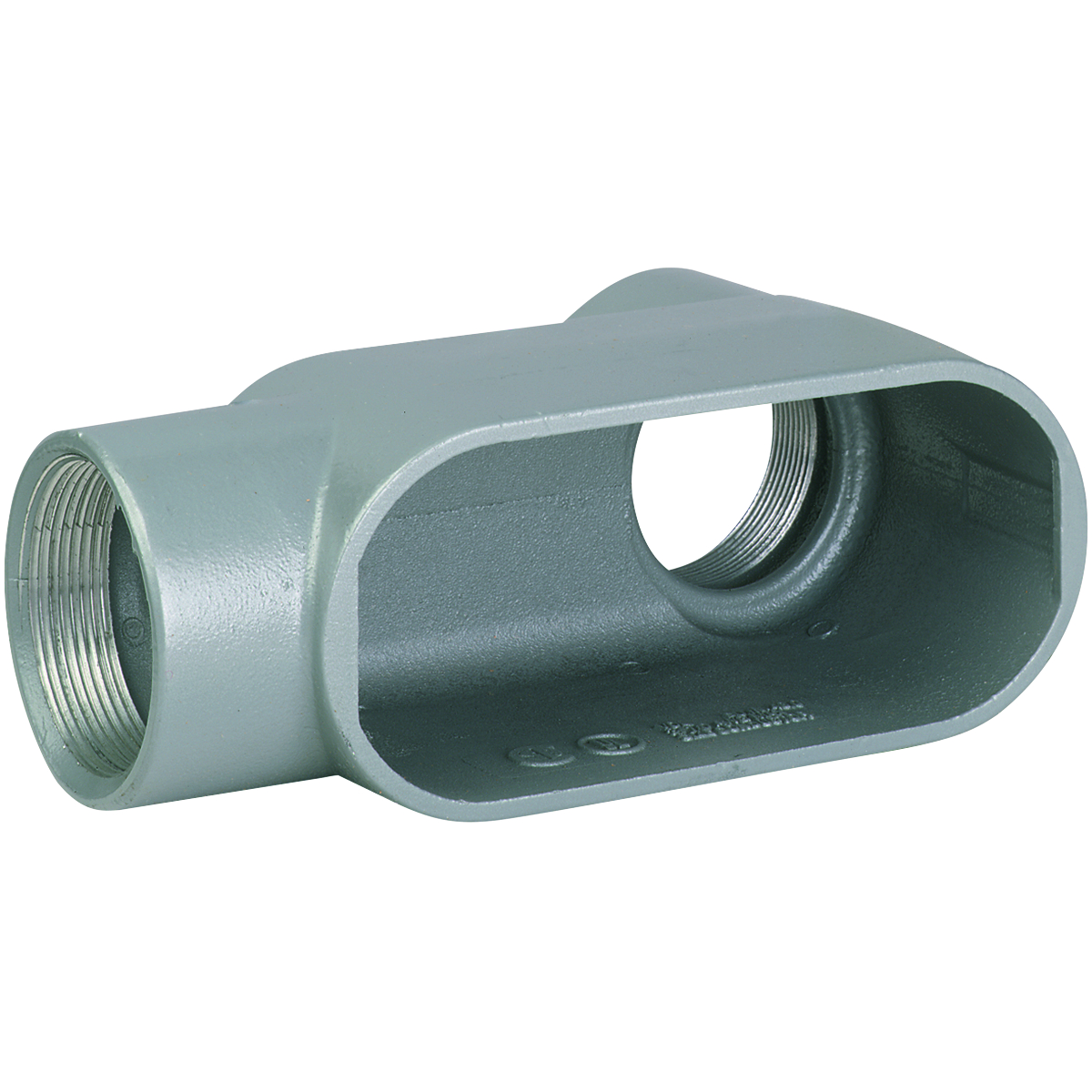

Killark LB77 Conduit Body 2-1/2 in Form 7 131.5 cu-in

Product Description

The Killark LB77 is a Type LB conduit body with a two and one-half inch hub and a capacity of 131.5 cubic inches. This conduit body is manufactured by Hubbell and designed for efficient and reliable installations. Constructed from iron and coated for corrosion resistance, the LB77 is suitable for both standard and hazardous locations.

• Form 7 design for neat and compact installation
• NEMA 3 enclosure rated for durability
• Interchangeable with competitive products

Product Highlights

This conduit body features enhanced sealing capabilities and is ready for various applications in both dry and wet locations.

Product Information

Standard Information

• Type: LB
• Hub Size: 2-1/2 inches

Technical Specifications

• Capacity: 131.5 cubic inches
• Dimensions: 10-15/16 inches L x 4-3/8 inches W x 6-3/16 inches H
• Connection Type: Thread
• Number of Hubs: 2
• Finish: Tri-Coated
• Enclosure Rating: NEMA 3
• Manufacturer: Hubbell
• UPC: 783936011066
