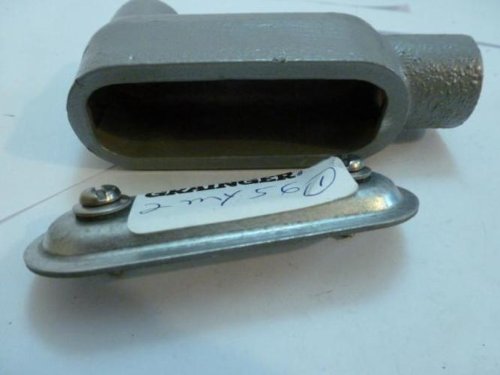

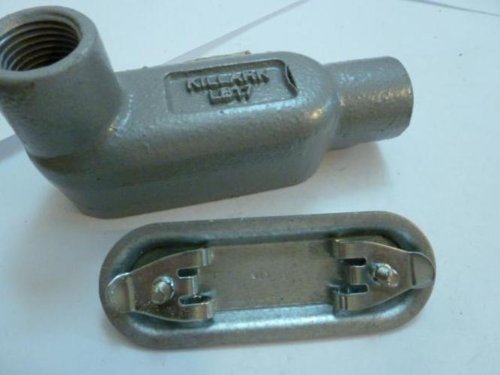

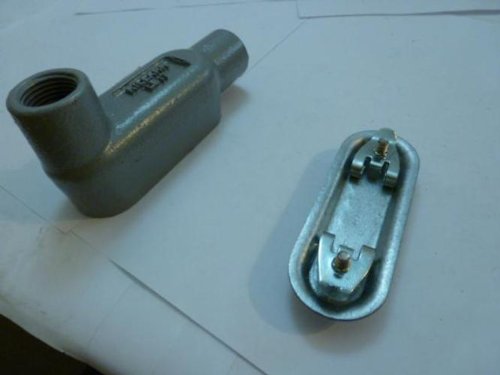

Killark LB17 Conduit Body, Duraloy Iron, 1/2 Hub, 4 Cubic Inch Volume

Product Description

The Killark LB17 conduit body is made from durable Duraloy iron. It features two hubs with a trade size of half an inch. The dimensions are four and eleven-sixteenths inches in length, one and one-half inches in width, and two and one-fourth inches in height, providing a volume capacity of four cubic inches.

• UL Listed and CSA certified for safety.
• Tri-coat finish for enhanced corrosion resistance.
• Designed for use in wet locations with appropriate gaskets.

Product Highlights

This conduit body allows access to conductors for pulling, splicing, and maintenance. It is compatible with various conduit types including IMC and RMC.

Product Information

Standard Information

• Manufacturer: Killark
• MPN: LB17

Technical Specifications

• Form: 7
• Type: LB
• Material: Iron
• Finish: Tri-Coated
• Capacity: 4 cu in
• Hub Size: 1/2 in
• Dimensions: 4-11/16 in L x 1-1/2 in W x 2-1/4 in H
• Connection Type: Threaded
• Application: For use with IMC, RMC
