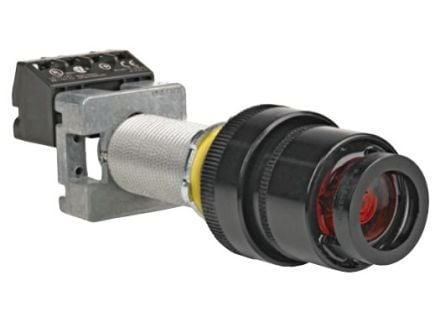

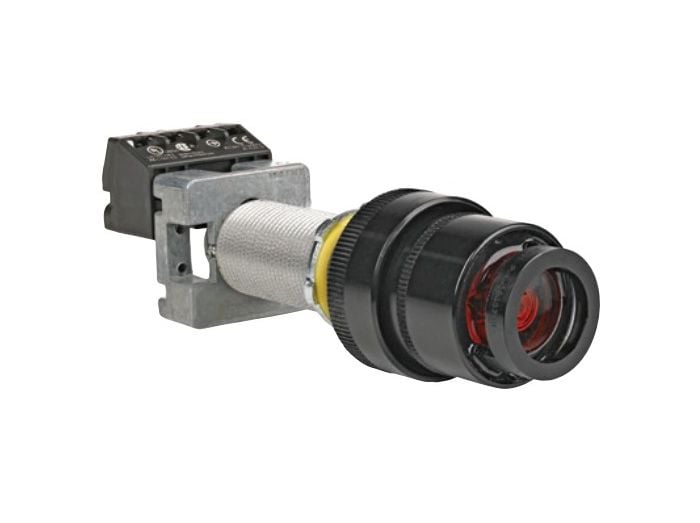

Killark GOB4-F233CN34 Switches, G Series

Product Description

The Killark GOB4-F233CN34 is part of the G Series of switches. These control stations can be grouped into a single assembly, reducing installation time and cost. The operators are aluminum, with stainless steel movable parts and screws. Junction boxes can mount operators with glass lenses for viewing internally mounted meters.

• Control stations can be grouped into a single assembly thus reducing installation time and cost
• Operators are all aluminum except for certain movable parts which are stainless steel, all other parts such as screws are either stainless steel or plated steel
• Junction boxes may be used to mount operators along with glass lens for viewing internally mounted meters. Additional relays, timers, terminal blocks, or other equipment may also be internally mounted to provide a single centralized control unit

Product Highlights

The Killark GOB4-F233CN34 features momentary operation, 1NO/1NC contacts, and approvals from ATEX, CSA, and UL.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GOB4-F233CN34

Technical Specifications

• Manufacturer Part Number: GOB4-F233CN34
• Manufacturer: Killark
• Product Series: G
• Family Series: Killark Switches, G Series
• Description: PUSHBUTTON, ILLUM, FROSTED 1NO/1NC 120V
• Illuminated: Yes
• Operation: Momentary
• Contacts: 1NO, 1NC
• Bezel: Plastic Round
• Lamp Type: Incandescent
• Nominal Lamp Voltage: 120 VAC
• Lens/Button Shape: Round Extended
• Operator Color: Frosted
• Approvals: ATEX, CSA, UL
