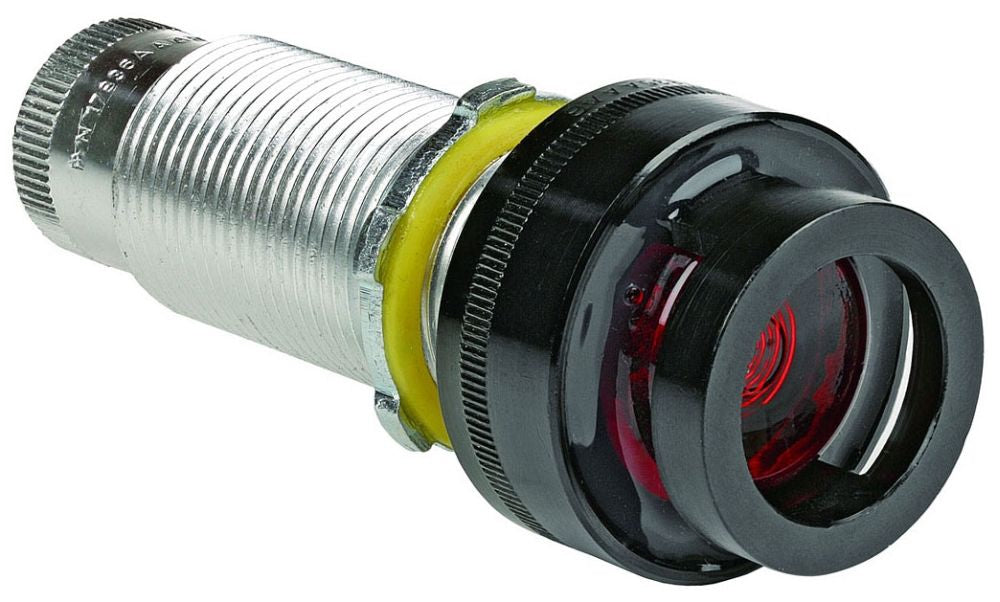

KILLARK GOB3-R23C-N34CN Pilot Light Operator

Product Description

The KILLARK GOB3-R23C-N34CN pilot light operator is essential for control in hazardous environments. It ensures reliable control for motor start/stop functions and provides LED pilot light indications. This operator is usable indoors and outdoors, especially within Class 1 Division 1 & 2 and Class 1 Zone 1 & 2 settings.

• Designed for hazardous locations
• Used for motor control and LED indication
• Features a red lens

Product Highlights

This component is built with durability in mind, accommodating various environmental conditions.

Product Information

Standard Information

• Brand: KILLARK
• MPN: GOB3-R23C-N34CN

Technical Specifications

• Series: GO
• Actuator Type: Pilot Light
• Color: Red
• Voltage Rating: 250 V
• Amperage Rating: 0.025 A
• Frequency Rating: 50/60 Hz
• Hazardous Location Rating: Class I, Divisions 1 & 2, Groups B, C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Divisions 1 & 2, Groups E, F, G; Class III, Divisions 1 & 2
• NEMA Rating: 3, 4, 4X
• UL File Number: E12379
• CSA File Number: LR11714
• ATEX File Number: 03ATEX 1203 U
• Operating Cycles: 10,000 hrs
• Ambient Temperature Range: UL: -25 to 40 °C, CSA: -50 to 40 °C, IEC: -20 to 40 °C
• Depth: 2-3/4 inches
