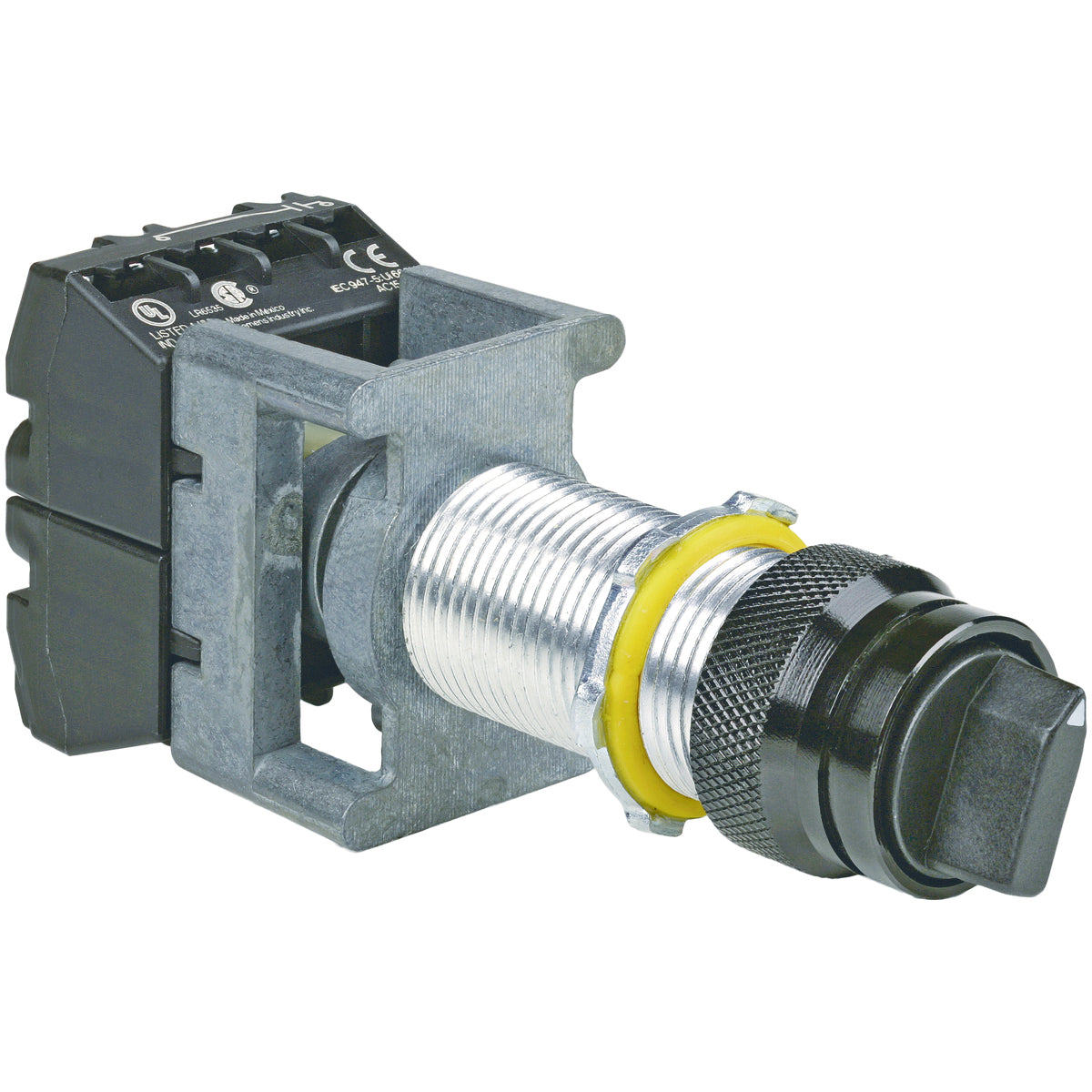

Killark GO5-3C3G-N34 GO SERIES Operators Selector Switch 600 VAC maximum

Product Description

The Killark GO5-3C3G-N34 is a selector switch designed for control in hazardous locations. This component is used with a suitable enclosure to manage functions such as START/STOP for motors and provide LED indications. Approved for use in Class 1 Division 1 and 2, as well as Class 1 Zone 1 and 2 areas, it can be utilized both indoors and outdoors. The switch is UL Listed and CSA Certified, ensuring compliance with safety standards.

• Designed for hazardous location control
• Compatible with multiple enclosures
• Constructed for indoor and outdoor use

Product Highlights

This selector switch features a rotary action with a three-position design, making it suitable for various applications in industrial settings.

Product Information

Standard Information

• Brand: Killark
• Manufacturer: Killark, a Hubbell affiliate

Technical Specifications

• Catalog Number: GO5-3C3G N34
• Country of Origin: United States
• Made in USA: Yes
• Action: Rotary
• Actuator: 3 Position Selector Switch
• Amperage Rating: 10
• Application: Designed for use in hazardous locations, specifically with B7E, EXB, XJB, DB, SWB, and GCS Series enclosures.
• Color: Black
• Contact Configuration: 1-NO/1-NC
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
• Number of Poles: 1
• Special Features: Utilizes in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 for control solutions.
• Standard: UL, CSA
• UPC: 783936997216
• GTIN: 00783936997216
• Item Type: Selector Switch
• Size: 2.25 in x 6.625 in x 1.75 in
• Environmental Conditions: Hazardous locations
• Voltage Rating: 600 VAC maximum
