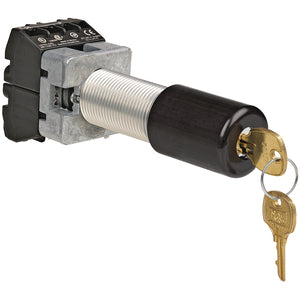

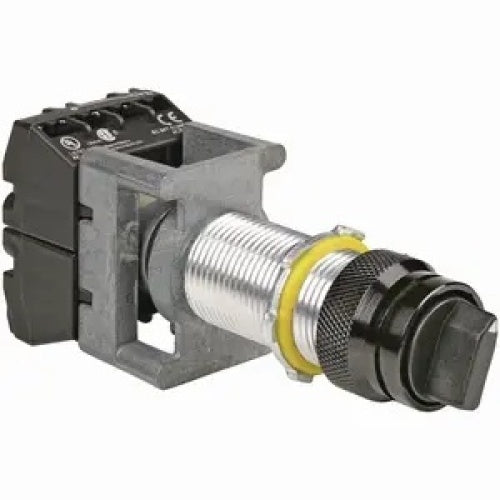

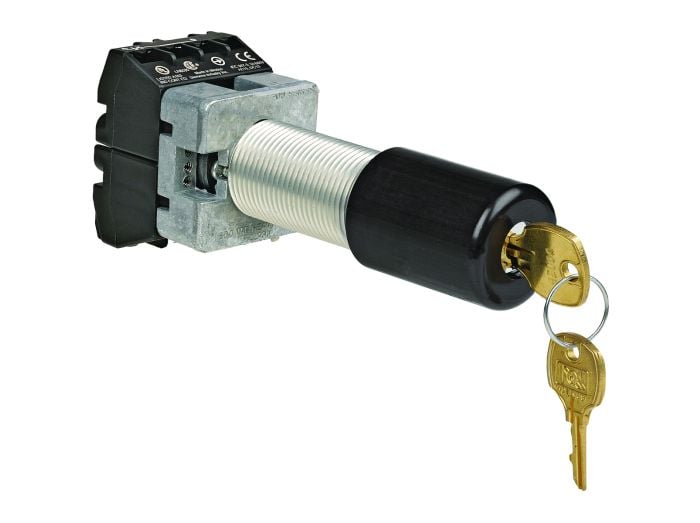

Killark GO28-2A3F20D G Series Selector Switch 1NO/1NC

Product Description

The Killark GO28-2A3F20D G Series operator is a component used with a hazardous location enclosure for control solutions such as START/STOP motor functions and LED pilot light indications. It is utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use and is UL Listed and CSA Certified. Operators are aluminum with stainless steel movable parts.

• Designed for use in hazardous locations when installed in suitable enclosures.
• Operators are aluminum except for certain movable parts which are stainless steel.
• Control stations can be grouped into a single assembly reducing installation time and cost.

Product Highlights

This selector switch is ideal for hazardous locations requiring reliable control, featuring robust construction and easy installation.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GO28-2A3F20D

Technical Specifications

• Brand: Killark
• Catalog Number: GO28-2A3F20D
• Action: Rotary
• Actuator: 2 Position Selector Switch
• Application: G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
• Series: GO Series
• Type: Selector Switch
• UPC: 783936223148
• Height: 1.25 in
• Length: 6.31 in
• Width: 2.25 in
• Amperage Rating: 10 A
• Contact Rating: 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
• Frequency Rating: 50/60 Hz
• Number Of Poles: 1
• CSA File Number: LR11714
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E12379
• Manufacturer Part Number: GO28-2A3F20D
• Manufacturer: Killark
• Product Series: G
• Family Series: Killark Switches, G Series
• Description: G KEY 2P SHORT SEL SWT MAINT CONT
• Illuminated: No
• Number of Positions: 2
• Selector Function: Maintained
• Operator Type: Key
• Contacts: 1NO, 1NC
• Max Voltage: 600 VAC
• Terminal Type: Fingersafe Screw
• Approvals: CSA, UL
• Comments: Short
