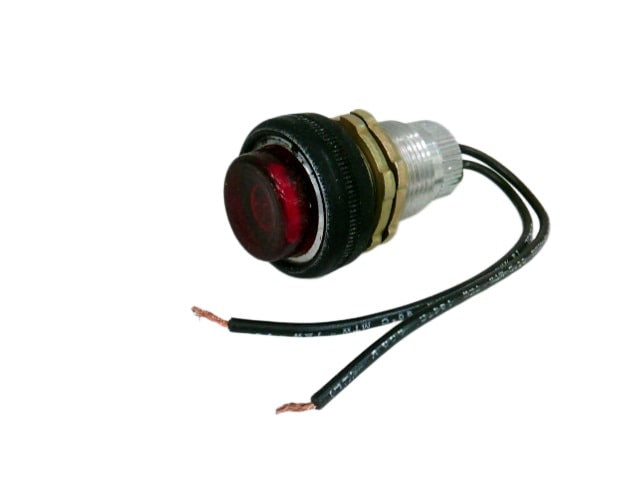

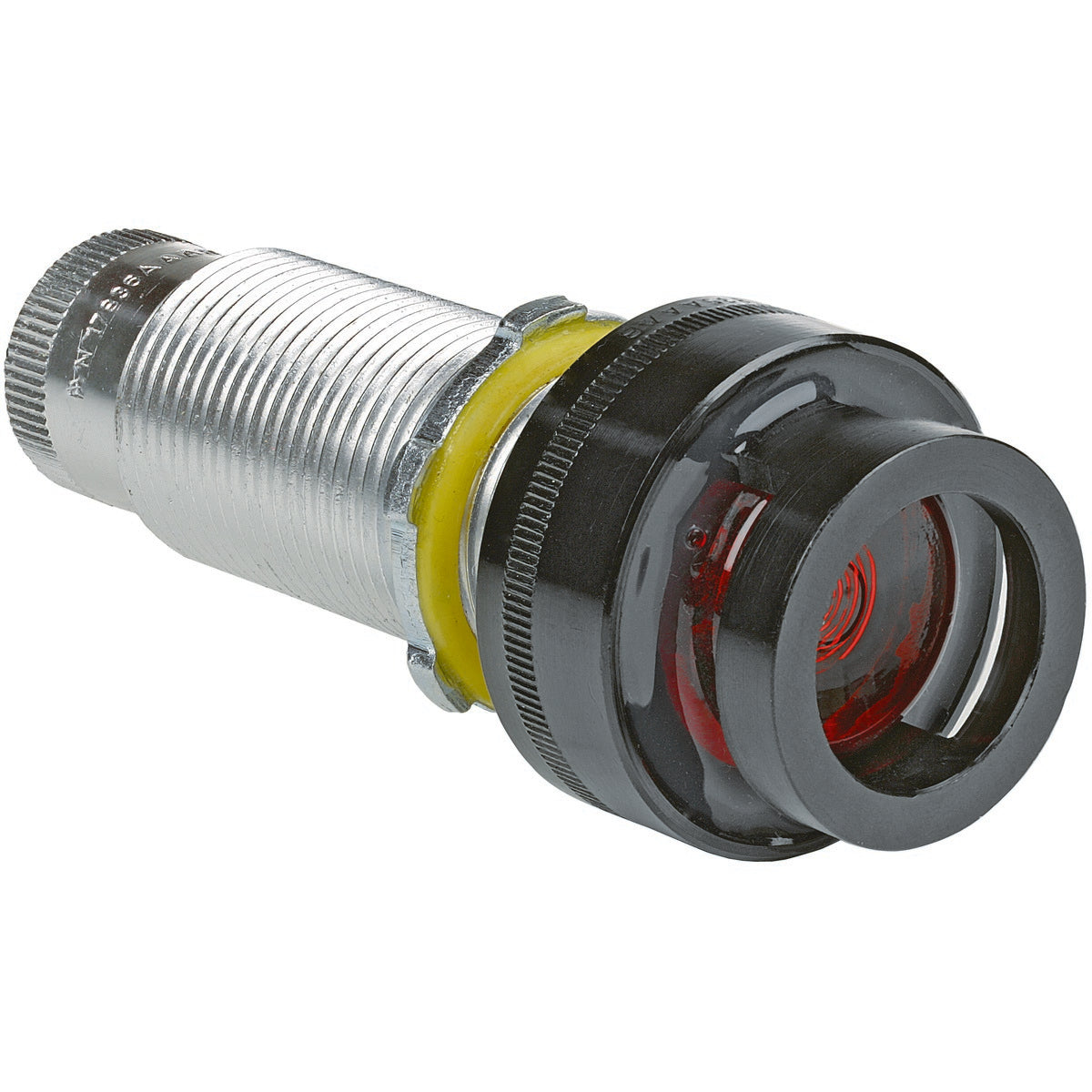

KILLARK Killark GO23-R23C G Series Aluminum Short Pilot Light Operator 120V (1-35/64 H x 1-35/64 W x 4-3/8 L) G023-R23C
KILLARK Killark GO23-R23C G Series Aluminum Short Pilot Light Operator 120V (1-35/64 H x 1-35/64 W x 4-3/8 L) G023-R23C
KILLARK Killark GO23-R23C G Series Aluminum Short Pilot Light Operator 120V (1-35/64 H x 1-35/64 W x 4-3/8 L) G023-R23C
KILLARK Killark GO23-R23C G Series Aluminum Short Pilot Light Operator 120V (1-35/64 H x 1-35/64 W x 4-3/8 L) G023-R23C

Killark GO23-R23C G Series Aluminum Short Pilot Light Operator 120V (1-35/64 H x 1-35/64 W x 4-3/8 L) G023-R23C

Brand: KILLARK
SKU: GO23-R23C
Availability: In Stock

Ships same day if ordered by 12 pm
$209.45
$209.45
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Killark GO23-R23C is a short-style G Series pilot light operator with an aluminum body, stainless steel movable parts, and a 110–120 V, 3 W pilot lamp rated for approximately 10,000 operating hours. The unit uses a 3/4-14 NPSM threaded body for mounting in suitable hazardous-location enclosures (e.g., B7E, EXB, XJB, DB, SWB, GCS and B7/Y7 starter enclosures). It is UL listed and CSA certified for control panel and start/stop motor indication applications.

  • 110–120 V, 3 W pilot lamp; approximately 10,000 operating hours
  • Aluminum operator with stainless steel movable parts; 3/4-14 NPSM threaded body for enclosure mounting
  • UL listed and CSA certified; designed for use in hazardous-location enclosures

Product Highlights

Short G Series pilot light operator; 110–120 V, 3 W; 3/4-14 NPSM mount; UL and CSA certified for hazardous locations

Product Information

Standard Information

  • Brand: KILLARK
  • Manufacturer Part Number: GO23-R23C
  • Country of Origin: United States
Technical Specifications
Manufacturer
Killark (Hubbell)
Brand
Killark
Manufacturer Part Number
GO23-R23C
Series
G Series
Product Type
Short style pilot light operator
Actuator
Pilot light
Rated Voltage
110-120 V
Power Consumption
3 W
Rated Current
0.025 A
Frequency
50/60 Hz
Operating Life
10,000 hours
Threaded Body
3/4-14 NPSM
Material
Aluminum operator; stainless steel movable parts; stainless or plated steel fasteners
Application
For use in hazardous locations when installed in suitable enclosures (B7E, EXB, XJB, DB, SWB, GCS series boxes; B7, Y7 starter enclosures)
Hazardous Location Ratings
Class I, Divisions 1 & 2; Class I, Zones 1 & 2; Class II, Divisions 1 & 2; Class III, Divisions 1 & 2
Certifications
UL listed; CSA certified
UL File Number
E12379
CSA File Number
LR11714
Dimensions
1.546875 in H x 1.546875 in W x 4.375 in L
Weight
0.19 lb
Country of Origin
United States
UPC
783936223025
GTIN
00783936223025
Intended Use
Control panels, start/stop motor functions and pilot light indication
Status
Discontinued by manufacturer
