Killark GESTT-3M Conduit Body 1 Inch

Product Description

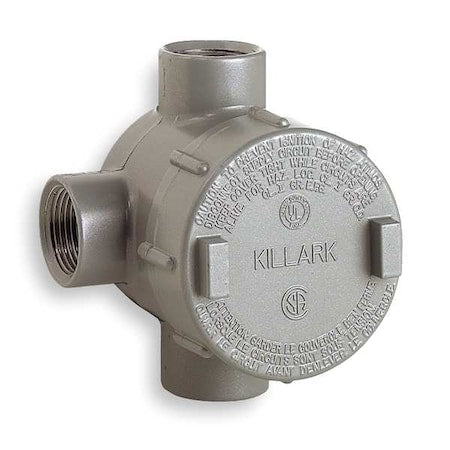

The KILLARK GESTT-3M is an explosionproof conduit outlet body with a T style and a 1-inch hub size. It features 3 hubs and a 42 Cu Inch capacity. Constructed with electro zinc chromate sealed electrostatically applied powder coated duraloy iron alloy body and an electrostatically applied powder coated copper free aluminum cover. Includes a grounding screw.

• Explosionproof conduit outlet box
• 42 Cu Inch capacity
• Includes grounding screw

Product Highlights

This conduit outlet body is suitable for hazardous locations and provides a reliable connection for electrical conduits.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: GESTT-3M
• Country of Origin: Mexico

Technical Specifications

• Style: T
• Hub Size: 1 Inch
• Hub Type: External
• Number of Hubs: 3
• Hub Location: (3) Side
• Capacity: 42 Cu Inch
• Shape: Round
• Cover Type: Internally Threaded
• Cover Opening Diameter: 3-9/16 Inch
• Enclosure: Class I Group D, Class I Zone 1 Group IIA, Class II, Class III
• Material: Electro Zinc Chromate Sealed Electrostatically Applied Powder Coated Duraloy Iron Alloy Body, Electrostatically Applied Powder Coated Copper Free Aluminum Cover
• Approval: UL 886, CSA C22.2
• Includes: Grounding Screw
• Item: Conduit Outlet Body
• Finish: Triple Coat Epoxy Coating
• Standards: CSA, UL
• Body Style: T
• Trade Size: 1 in
• Thread Size: 1 in
• Body Capacity: 42 cu in
• Thread Gender: Female
• Overall Height: 4 1/8 in
• Overall Length: 7 5/16 in
• Connection Type: Threaded
• Hazardous Location: Yes
• Connection Orientation: Multi-Angle
• Compatible Conduit Type: RMC
• Hub Style: Threaded
