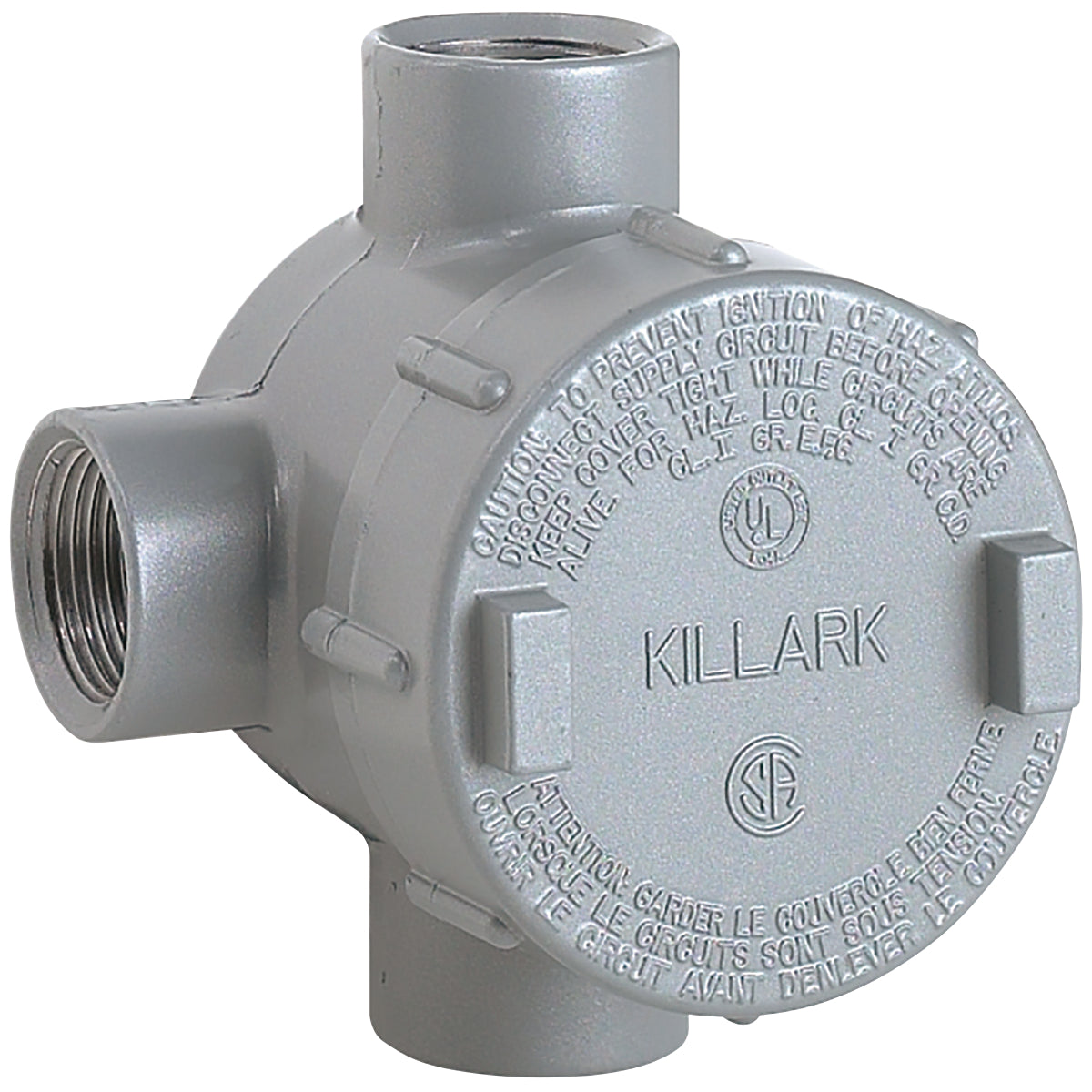

Killark GEMT-1 GE Series Type T Conduit Outlet Body 1/2 in

Product Description

The Killark GEMT-1 GE Series Type T Conduit Outlet Body protects conductors in threaded rigid conduit. It acts as a pull and splice box, interconnects lengths of conduit, changes conduit direction, and provides access to conductors. The GEM series features a water-shedding cover suitable for wet locations when mounted upright.

• Water shedding cover suitable for wet locations when mounted in upright position
• External cover threads on body protecting conductors from damage during pulling
• No pinching of conductors during cover install

Product Highlights

This conduit outlet body is made from copper-free aluminum with an electrostatically applied powder coating. It is suitable for hazardous locations.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GEMT-1
• Country of Origin: MX

Technical Specifications

• Catalog Number: GEMT-1
• Color: Gray
• Connection Type: NPT
• Country of Origin: MX
• Cubic Capacity: 8 cu. in.
• Finish: Powder Coated
• Series: GEM
• Standard: UL, CSA
• Type: Outlet Body
• UNSPSC: 39121314
• Body Type: T
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Configuration: GEMT
• Hub Quantity: 3 Hubs
• Hub Placement: (3) Sides Tee
• Hub Style: External Hubs
• Shape: Round
• Cover Type: Internally Threaded, Blank
• Product Series: GE
• Family Series: Killark Conduit Outlet Bodies, GE Series
• Style: Threaded Aluminum
• Cover Included: Yes
• Gasket Included: Yes
• Conduit Type: RMC (Rigid Metal Conduit)
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Approvals: CSA, UL
• ECCN: EAR99
• Application: Conduit Systems
• Cable Entry: 0.50
• Height: 3.75 in
• Length: 11.00 in
• Width: 7.00 in
• Brand: Killark
• Manufacturer: Hubbell
• Capacity: 8 in
• Hub Size: 1/2 in
• Cover Opening Dia.: 2.06"
• Nominal Depth - less cover: 2.31"
• Cubic Inches: 8 in
• Hub Diameter: 3/4 in
• Description: 1/2in. ALUM OUTLET BODY T TYPE 2
• Trade Size: 1/2 "
