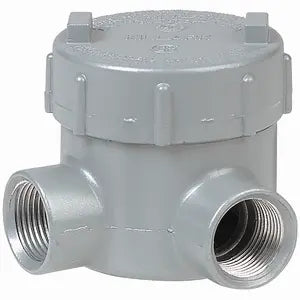

Killark GEML-1 gem outlet body l-type 1/2 inches replacement GEML-1

Product Description

The Killark GEML-1 is a 1/2" GEM outlet body L-Type. It is designed for conduit systems within hazardous areas to protect conductors in threaded rigid conduit. Acts as pull and splice boxes, interconnects lengths of conduit, and provides access to conductors for maintenance and future system changes.

• Water shedding cover suitable for wet locations when mounted in upright position.
• External cover threads on body protecting conductors from damage during pulling.
• No pinching of conductors during cover installation.

Product Highlights

This Killark GEM outlet body has taper threaded hubs to provide ground continuity and a smooth integral hub bushing to protect conductor insulation when pulling.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GEML-1
• Country of Origin: Mexico

Technical Specifications

• Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• Catalog Number: GEML-1
• Color: Gray
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Powder Epoxy Paint
• Hub Pattern: L
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: GE Series
• Type: Outlet Body With Cover
• UPC: 783936210209
• Finish: Gray
• Hub Size: 1/2"
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA
• UL File Number: E10514
• For Use in Hazardous Locations: Yes
• Cable Entry: 0.50 in
• Trade Size: 1/2 Inch
• Brand: KILLARK
• Sub Brand: Killark
• MPN: GEML-1
• Country of Origin: United States
