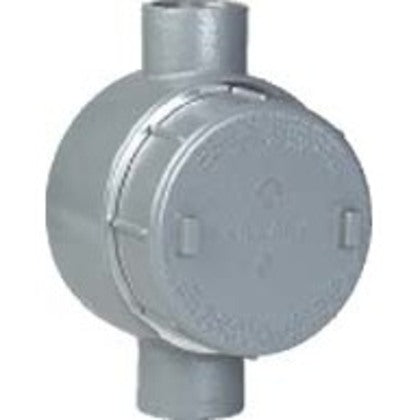

Killark GEMC-1 Gem Outlet Body C-Type 1/2 inches

Product Description

The Killark GEMC-1 is a ½" GEM outlet body C-Type designed for conduit systems in hazardous areas. It protects conductors in threaded rigid conduit, acts as a pull and splice box, interconnects conduit lengths, changes conduit direction and provides access to conductors. Suitable for wet locations when mounted upright.

• Water shedding cover suitable for wet locations when mounted in upright position
• External cover threads on body protecting conductors from damage during pulling
• Taper threaded hubs to provide ground continuity

Product Highlights

This conduit outlet body is ideal for protecting conductors in hazardous environments, offering easy access and reliable performance.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GEMC-1
• Country of Origin: United States

Technical Specifications

• Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• Catalog Number: GEMC-1
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: C
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: GE Series
• Type: Outlet Body With Cover
• UPC: 783936210186
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA
• UL File Number: E10514
• Height: 3.75 in
• Hub Size: 1/2"
• Length: 11 in
• Weight: 0.8 lb
• Width: 7 in
• Cubic Inches: 8 in
• Country of Origin: United States
• Diameter: 1/2 in
