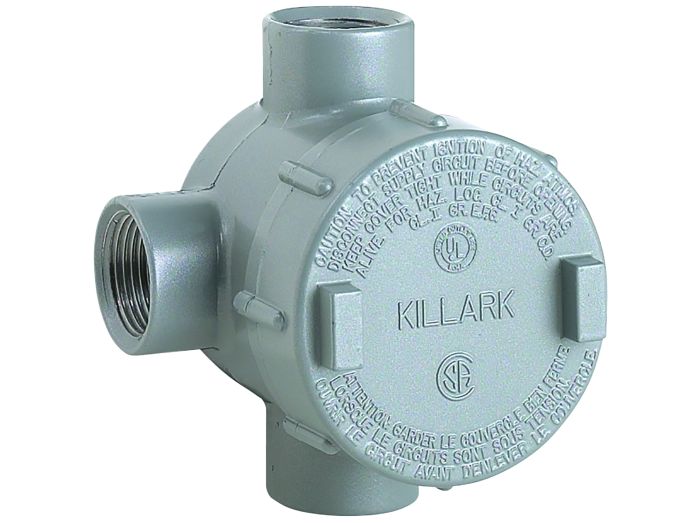

Killark GECTT-2 GEC Outlet Body T-Type 3/4 inches

Product Description

The Killark GECTT-2 GEC outlet body is a T-Type conduit fitting with a 3/4" hub. Constructed from copper-free aluminum with a powder epoxy paint finish, it protects conductors in threaded rigid conduit systems. It acts as a pull and splice box, interconnects conduit lengths, and changes conduit direction. Suitable for wet locations when mounted upright.

• Water shedding cover suitable for wet locations when mounted in upright position
• External cover threads protect conductors from damage during pulling
• Taper threaded hubs provide ground continuity

Product Highlights

This Killark GECTT-2 outlet body provides reliable protection and access for conductors in hazardous locations.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: GECTT-2
• Country of Origin: MX

Technical Specifications

• Catalog Number: GECTT-2
• Application: Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Hub Pattern: T
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: GE Series
• Type: Outlet Body With Cover
• UPC: 783936210124
• Hub Size: 3/4"
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA
• Cubic_Capacity: 19 cu. in.
• Finish: Powder Coated
• Standard: UL, CSA
• Trade Size: 3/4 "
• Connection Type: Threaded
• Brand: HUBBELL KILLARK
