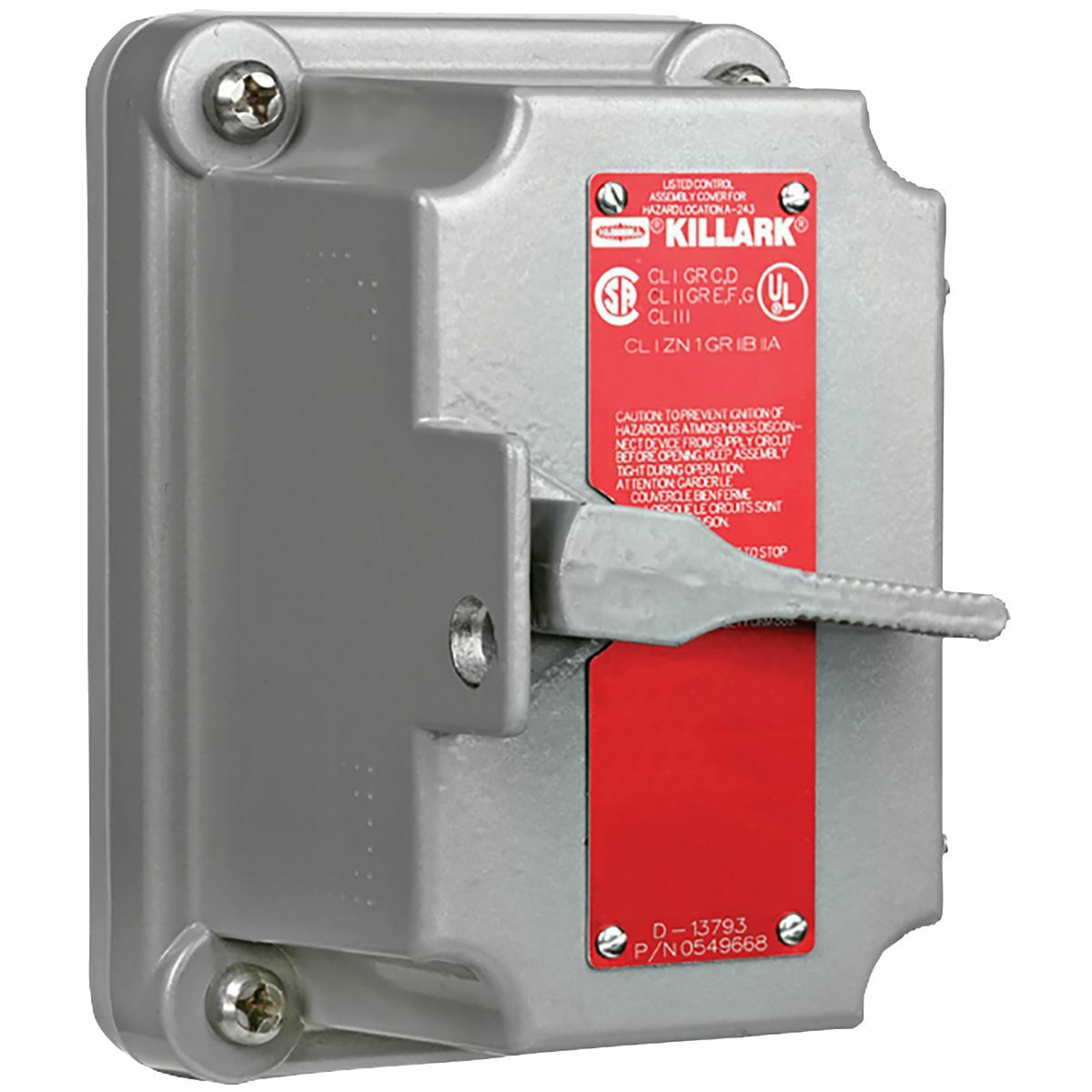

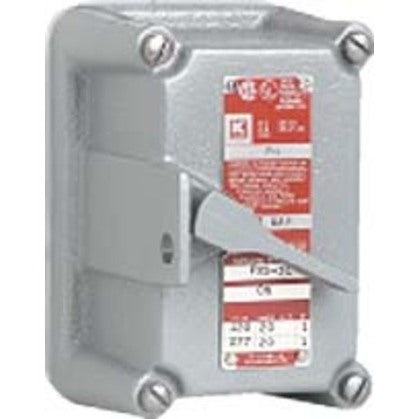

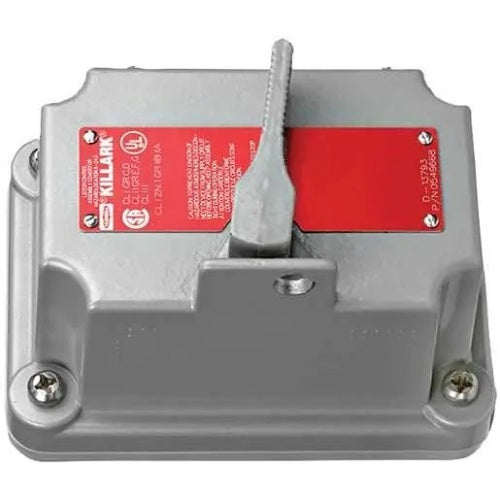

Killark FXS-4C FXS Series Aluminum 4-Way Tumbler Switch Cover With Device - Factory Sealed - 20A

Product Description

The KILLARK FXS-4C is an aluminum 4-way tumbler switch cover with a factory-sealed device, part of the FXS series. Suitable for applications requiring connection changes in electrical circuits, it is designed for hazardous locations. It is utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.

• Factory Sealed
• Suitable for hazardous locations
• Aluminum construction

Product Highlights

This Killark tumbler switch cover provides solutions in hazardous location areas to supply START/STOP Motor Functions and Light Switching.

Product Information

Standard Information

• Brand: KILLARK
• Manufacturer Part Number: FXS-4C
• Country of Origin: United States

Technical Specifications

• Catalog Number: FXS-4C
• Manufacturer: Killark
• Brand: Killark
• Country of Origin: United States
• Made in USA: Yes
• Action: SPDT (4-way)
• Actuator: Lever
• Amperage Rating: 20 A
• Application: FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings.
• Standard: UL, CSA
• UPC: 783936194806
• GTIN: 00783936194806
• Item Type: Factory Sealed
• Voltage Rating: 120/277 VAC
• Type: Cover Assembly
• Used On: FXS Series Tumbler Switch Control Station
• Switch Style: 4-Way
• Switch Rating: 120/277 VAC at 20 Ampere
• Enclosure: NEMA 3C/3D/7C/7D/9E/9F/9G
• Series: FXS Series
• Depth: 3.15 in
• Frequency Rating: 50/60 Hz
• Number Of Poles: 1
• CSA File Number: LR11712
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 3
• UL File Number: E53360, E10501
• Material: Aluminum
• Power Rating: 1 hp at 120 VAC, 2 hp at 240 VAC
• Contact Configuration: SPDT
