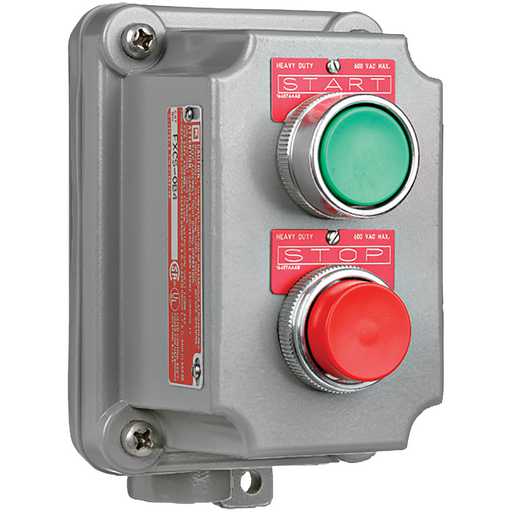

Killark FXCS-0B4U Control Station Cover Assembly: Two Pushbuttons

Product Description

The Killark FXCS-0B4U is an aluminum momentary contact double push button cover with device. Factory sealed with a green 'Start' button and a red 'Stop' button, it features a 2NO/2NC contact rating. It is utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas.

• Eliminates external sealing requirements.
• Lower installation cost.
• NEMA 3 weatherproof.

Product Highlights

This control station cover assembly provides control solutions in hazardous locations and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: FXCS-0B4U
• Country of Origin: India

Technical Specifications

• Action: Momentary
• Actuator: Double Pushbutton
• Application: SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
• Back Box Type: FXB
• Catalog Number: FXCS-0B4U
• Color: Green-Red
• Material: Copper-free aluminum
• Series: FXCS Series
• Type: Aluminum Factory Sealed Cover With Two Push Buttons
• UPC: 783936200484
• Amperage Rating: 10 A
• Frequency Rating: 50/60 Hz
• Number Of Poles: 2
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• Nema Rating: 3
• Factory Sealed: Factory Sealed
• Brand: Hubbell Killark
• MPN: FXCS-0B4U
• Country of Origin: India
