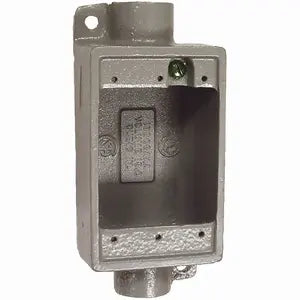

Killark FS-3M F Series Type FS Dead End Shallow Cast Device Box, Duraloy Iron, 18 cu-in Capacity, 1 Gangs, 1 Outlets, 5-1/2 in H x 2-7/8 in W x 2 in D

Product Description

The Killark FS-3M F Series Type FS dead end shallow cast device box accommodates wiring devices and provides an opening to splice, tap, or pull conductors. It provides access to conductors for maintenance and future system changes. It is suitable for use in wet locations when used with gasket covers.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Suitable for use in wet locations when used with gasket covers

Product Highlights

Accommodates wiring devices and provides opening to splice, tap or pull conductors. Cast iron is suitable for concrete use.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: FS-3M
• Country of Origin: Mexico

Technical Specifications

• Hub Size: 1 in
• Hub Style: Tapered Threaded
• Mounting Type: Lug
• Number of Gangs: 1
• Number of Outlets: 1
• Series: F Series
• Type: Type FS Dead End Shallow
• Application: For use to accommodates wiring devices and provides opening to splice, tap or pull conductors and used to provide access to conductors for maintenance and future system changes, standard and hostile locations
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA C22.2 No. 18 File No. LR11852, Federal Specification No. W-C-586D, UL 514A File No. E3397
• Capacity: 18 cu-in
• Color: Gray
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
• Material: DURALOY Iron
• Box Depth: 2 in
• Box Height: 2-7/8 in
• Box Shape: Rectangular
• Box Width: 4-5/8 in
• Bracket Type: Lugs
• Hub Type: Dead End
• Overall Depth: 2 in
• Overall Height: 2-7/8 in
• Overall Width: 5-1/2 in
• Standards: CSA; UL Listed
• UNSPSC: 39121305
• Catalog Number: FSC-3M
• Finish Type: Powder Epoxy Paint
• Hub Pattern: Feed-Thru
• UPC: 0783936048734
• Model: FS-3M
• Number of Poles: 1
• Resistance Properties: Weatherproof
• Item Height: 3.000
