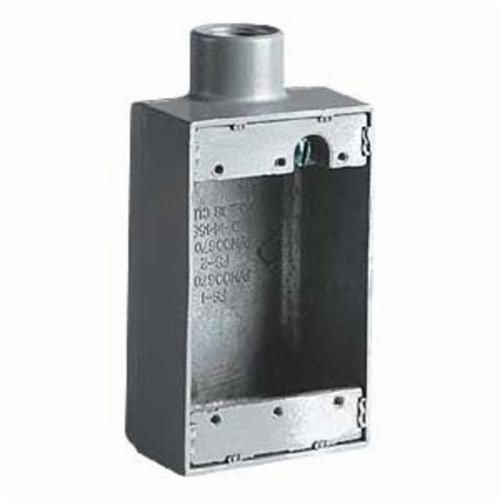

Killark FS-3 fs series dead end device box 18 cu-in

Product Description

The Killark FS-3 FS Series Dead End Device Box features an internal ground screw and is constructed from copper-free aluminum. With a capacity of 18 cu-in, this 1-gang box has 1 outlet and measures 5-1/2 in H x 2-7/8 in W x 2 in D. It provides access to conductors for maintenance and system changes.

• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Suitable for use in wet locations when used with gasket covers

Product Highlights

The Killark FS-3 is ideal for electrical wiring, accommodating wiring devices and providing an opening to splice, tap, or pull conductors.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: FS-3
• Country of Origin: Unknown

Technical Specifications

• Hub Size: 1 in
• Hub Style: Tapered Threaded
• Material: Aluminum
• Mounting Type: Lug
• Number of Gangs: 1
• Number of Outlets: 1
• Capacity: 18 cu-in
• Catalog ID: KLRFS-3
• Color: Gray
• Enclosure Type: NEMA FB-1
• Finish: Powder Coated
• Series: FS
• Shape: Shallow
• Type: Dead-End
• Application: For used to provide access to conductors for maintenance and future system changes
• Standard & Approvals: UL 514A, E3397, CSA C22.2 No 18, LR11852, Federal Specification W-C-586D, NEMA FB-1, RoHS Compliant
• MPN: FS-3
• Device Type: Threaded Device Box
• Suitable For: Interior,Wall
• Mounting Style: Wall
