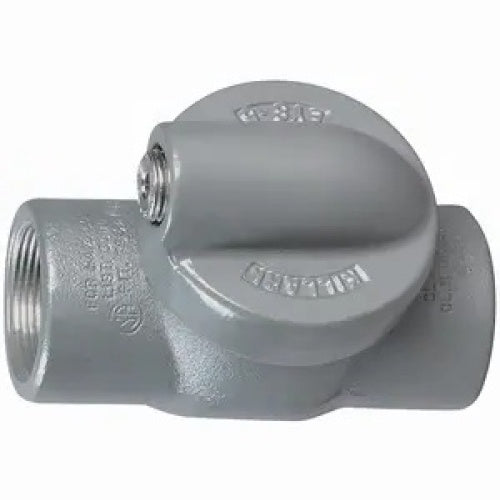

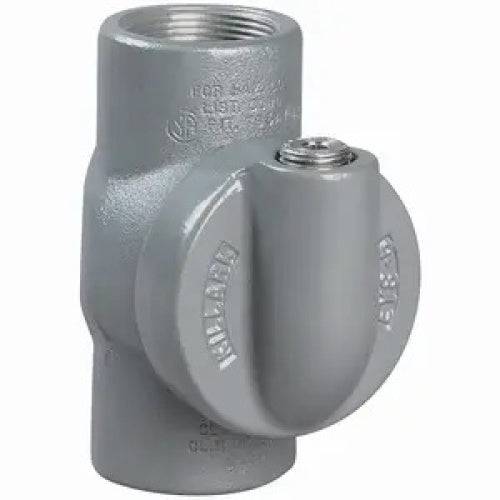

Killark EYS-4 1-1/4 inches EYS Seal Fitting Aluminum

Product Description

The Killark EYS-4 is a 1-1/4" EYS seal fitting made from aluminum with a female/female connection. Designed for hazardous locations, it minimizes the passage of gases and vapors and prevents flame passage through conduit systems. Features a large opening for easy fiber packing and compound pouring.

• Large opening for easy packing of fiber and pouring of compound
• Integral bushings in conduit hubs to protect conductor insulation from damage
• NPT tapped hubs to ensure ground continuity

Product Highlights

This aluminum seal fitting is ideal for use with rigid/IMC conduit in hazardous locations.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: EYS-4

Technical Specifications

• Catalog Number: EYS-4
• Material: Aluminum
• Color: Gray
• Finish Type: Powder Epoxy Paint
• Series: EYS Series
• Type: Sealing Fitting
• UPC: 783936110141
• Height: 7.062 in
• Hub Size: 1-1/4"
• Length: 10.12 in
• Width: 4.68 in
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D Class I, Zones 1 & 2, Groups IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E10514
• Carton Quantity: 5
• Diameter: 1 1/4 in
