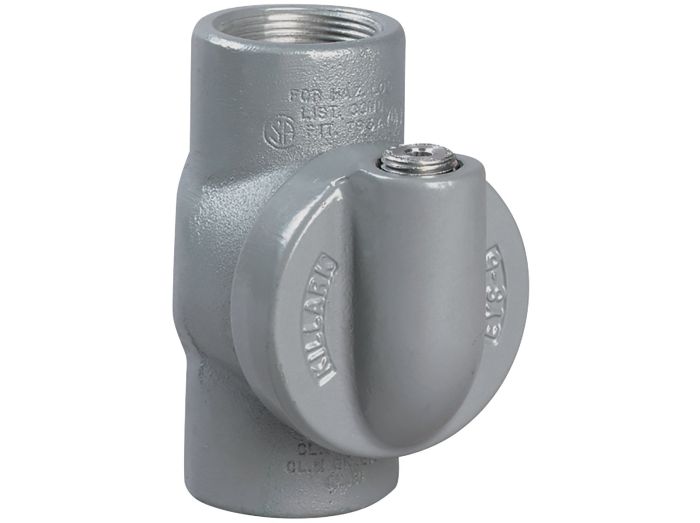

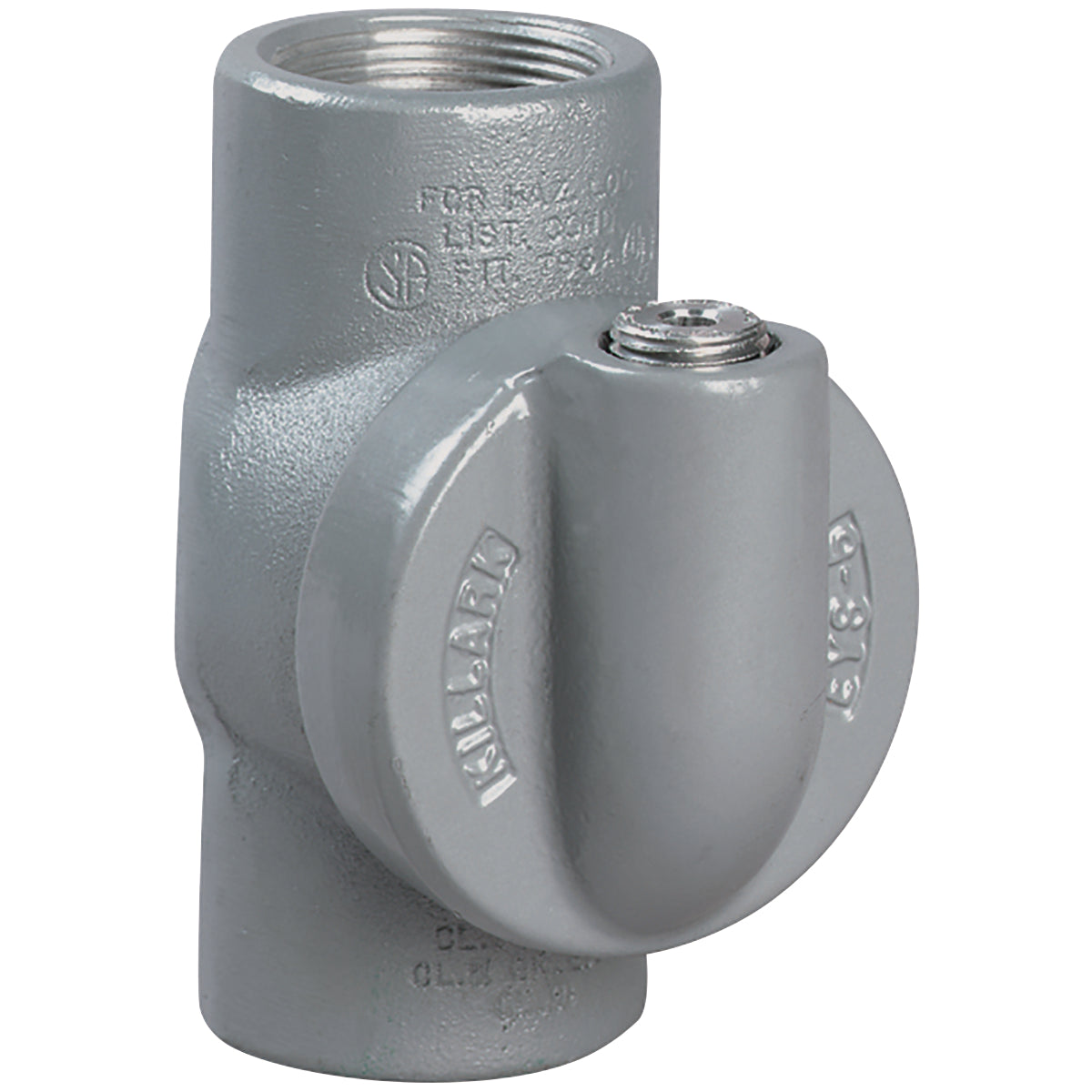

Killark EYS-2 eys conduit sealing fitting 3/4 in

Product Description

The Killark EYS-2 is a conduit sealing fitting designed for use with vertical or horizontal conduits. The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. It is made from copper-free aluminum with an electrostatically applied powder coating.

• Copper-free aluminum (less than 4/10 of 1%)
• Electrostatically applied powder coating
• Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system

Product Highlights

The Killark EYS-2 sealing fitting is suitable for hazardous locations and minimizes the passage of gases and vapors.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: EYS-2
• Country of Origin: MX

Technical Specifications

• Brand: Killark
• Part Number: EYS2
• Number of Items: 1
• Manufacturer: Hubbell
• Size: 3/4 in
• Catalog Number: EYS-2
• Country of Origin: MX
• Series: EYS
• Standard: UL, CSA
• Type: Sealing Fitting
• UNSPSC: 39131708
• UPC 11: 78393611012
• UPC 12: 78393611012
• Finish: Powder Epoxy Paint
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Suitable For Use With: Vertical/Horizontal Conduit
• Manufacturer Part Number: EYS-2
• Product Series: EYS
• Family Series: Killark Fittings, EYS Series
• Description: EYS SEAL FTG AL 3/4in. FEMAL/FEMAL
• Connection Type: Female Hub
• Position: Vertical and Horizontal
• Trade Size: 3/4 "
• Turning Radius: 1.281 "
• Composition: Metallic
• Protection Rating: Indoor, Outdoor
• Hazardous Location: Yes
• Brand Name: KILLARK
• Sub_Brand: KILLARK
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCSA File No. LR11716UL File No. E10514Class I, Div 1 & 2, Groups C, D, Class I, Zone 1, Groups IIB, IIA, Class II, Div 1 & 2, Groups E, F, G, Class III
