Killark CL-3 Pull Elbow 1 inches Aluminum Female/Female

Product Description

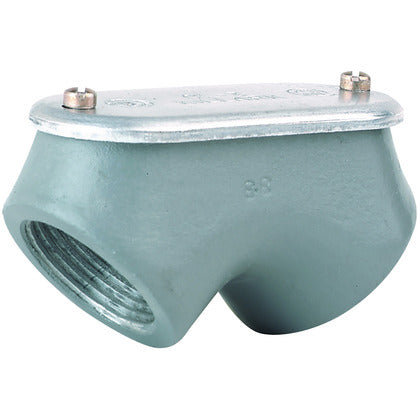

The Killark CL-3 is a pull elbow with 1" Aluminum Female/Female connections. Designed for easier wire pulling, this fitting accommodates pulling conductors through sharp bends in conduit systems. It includes a cover and gasket and is suitable for use with threaded conduit.

• Designed for easier wire pulling
• Copper free Aluminum (Less Than 4/10 of 1%)
• Includes cover and gasket

Product Highlights

The Killark CL-3 pull elbow is made from copper-free aluminum with an electrostatically applied powder coating and is UL and CSA certified.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: CL-3
• Country of Origin: United States

Technical Specifications

• Material: Aluminum
• Series: CL
• Suitable For Use With: Threaded Conduit
• Trade Size: 1 in
• Application: Used to accommodate pulling conductors through a sharp bend in the conduit system
• Standard & Approvals: UL E22699, CSA File LR11852, RoHS Compliant
• Angle: 90 deg
• Finish: Electrostatically Applied Powder Coating
• Includes: Cover and Gasket
• Type: Rigid Conduit Pull Elbow
• Installation: Threaded Female/Female
• Throat: Non-Insulated
