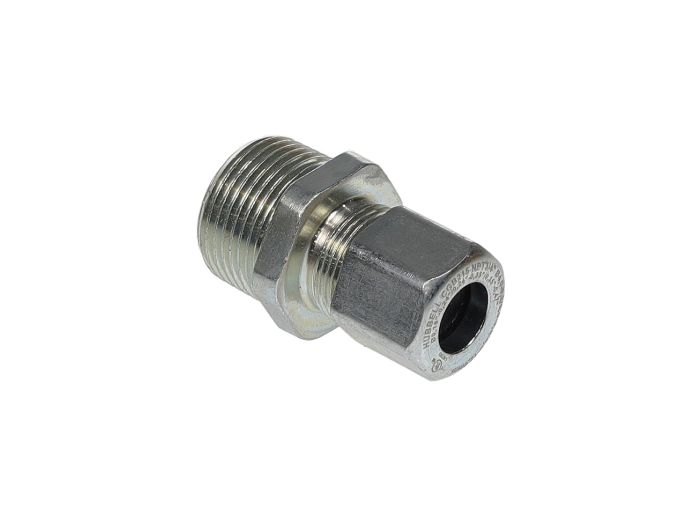

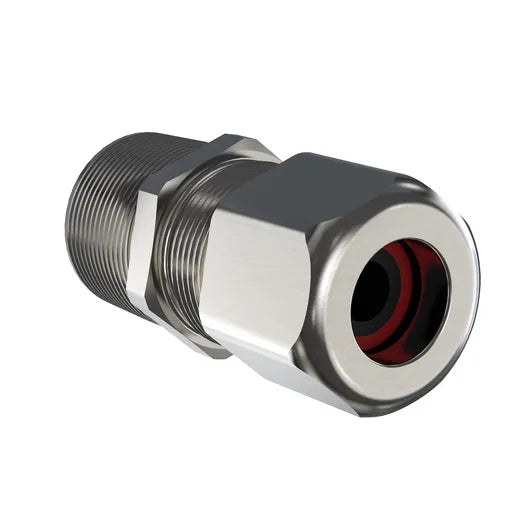

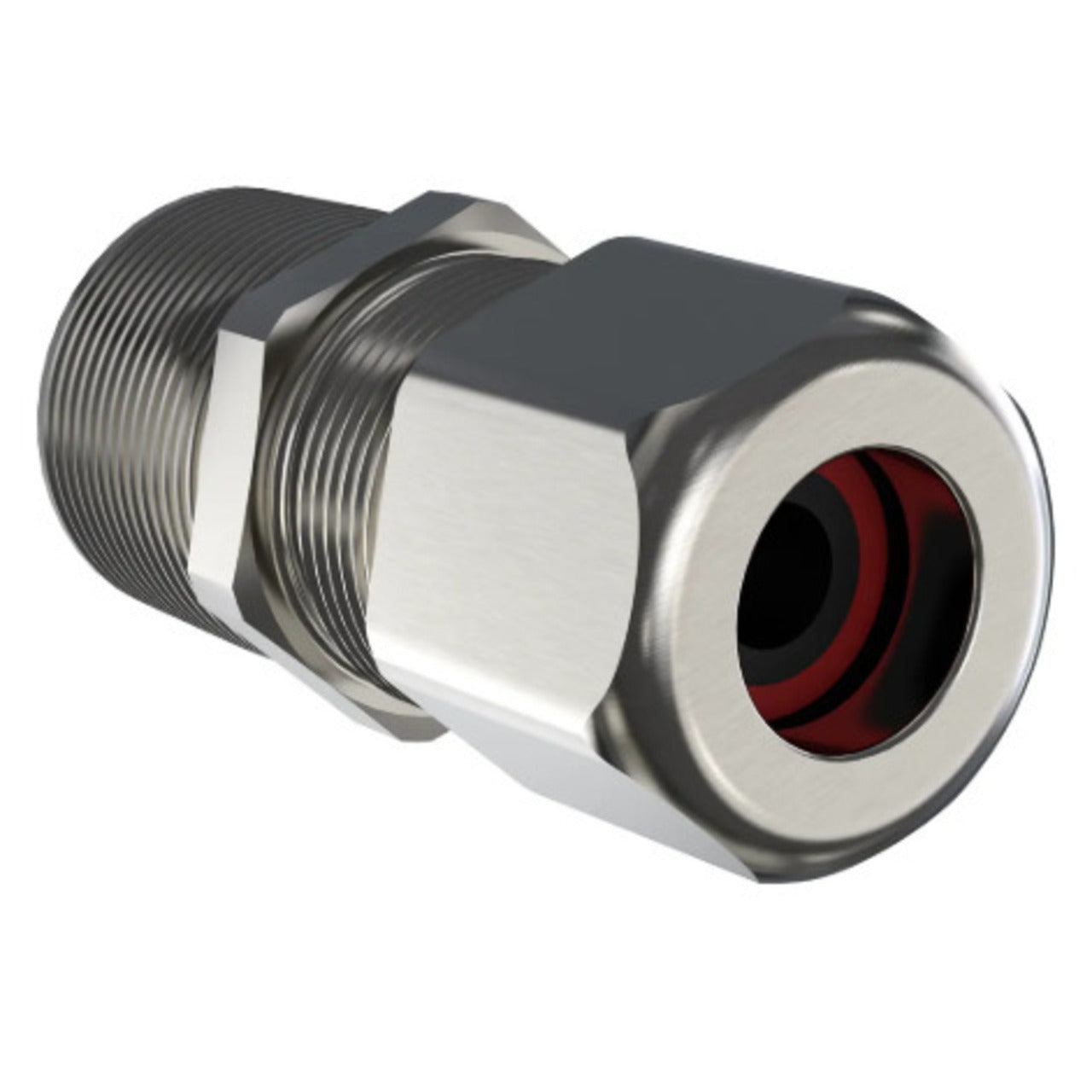

Killark CGB215 CGB Series - Unarmored Cable Connector 3/4 inches NPT

Product Description

The Killark CGB215 is a connector for unarmored cables and flexible cords. It features a removable top-hat sleeve seal to accommodate various cable sizes. The connector meets Type 3, 3R, 4, 4X, and 12 ingress protection ratings, suitable for NEC and CEC applications.

• Covers a wide range of cable diameters.
• Field-removable grommet sleeves for cable adjustments.
• Reduces need for multiple connector types on job sites.

Product Highlights

This connector simplifies installation and provides strong protection in various environments.

Product Information

Standard Information

• Brand: Killark
• Catalog Number: CGB215

Technical Specifications

• Ingress Protection: Type 3R, 4, 4X, 12
• Material: Steel
• Operating Temperature: -40C to +80°C
• Hub Size: 3/4 inches
• Cable Range: 0.157 - 0.472 inches
• Hub Type: Male NPT Thread
• NEMA Rating: NEMA 1, 12, 3, 3R, 4, 4X
• Approvals: cULus
