Killark AN-3 Conduit Nipple 1 inches

Product Description

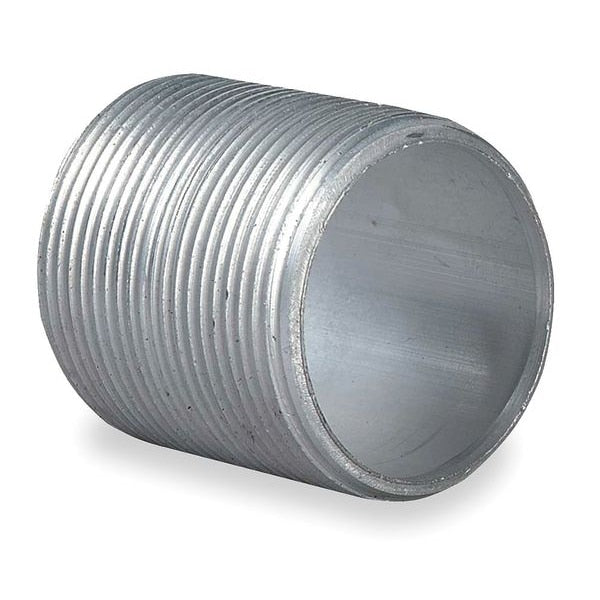

The Killark AN-3 is a 1" aluminum rigid conduit nipple with tapered threads (NPT) that meet the latest UL 1203 requirements. It connects threaded or IMC conduit to cast hubs on drilled and tapped conduit openings and is suitable for hazardous locations.

• Tapered threads (NPT) meet latest UL 1203 requirements
• Connects threaded or IMC conduit to cast hubs
• Suitable for hazardous locations

Product Highlights

The Killark AN-3 conduit nipple is ideal for connecting threaded conduits in demanding environments.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: AN-3
• Country of Origin: United States

Technical Specifications

• Application: To connect threaded or IMC conduit to cast hubs on drilled and tapped conduit openings
• Catalog Number: AN-3
• Color: Silver
• EU RoHS Indicator: Contact Manufacturer
• Finish Type: Natural
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: AN Series
• Type: Rigid Conduit Nipple
• UPC: 783936012230
• Height: 1.214 in
• Hub Size: 1"
• Length: 1.96 in
• Width: 1.214 in
• Buy America(n) Qualified: Contact Manufacturer
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E311892
• Brand: KILLARK
• MPN: AN-3
• Country of Origin: United States
• Standards: UL E311892
• Ends - Hazardous Fittings: 1 in MNPT x 1 in MNPT
• Hazardous Location Rating: Class I, Division 1 and 2, Groups A, B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III, Division 1 and 2
• Hazardous Location: Yes
• Features: Tapered Threads (NPT)
• Number of Pieces: 1
• Seal Type: Vertical and Horizontal Conduit Sealing Fittings
• Thread Type: NPT
• Shape: Round
• Connection Orientation: Straight
• Fitting Type: Nipple
• Body Style: AN
• Thread Gender: Male to Male
• Conduit Fitting Material: Copper Free Aluminum
• Connection: Male to Male
• Conduit Outlet Body Hub Style: Threaded
• Fitting Sub-Category: Nipples
• Item - Conduit Fitting: Nipple
• Conduit Fitting Type: Nipple
• Trade Size: 1 in
• Connection Type: Threaded
• Finish: Plain
• Item: IMC
