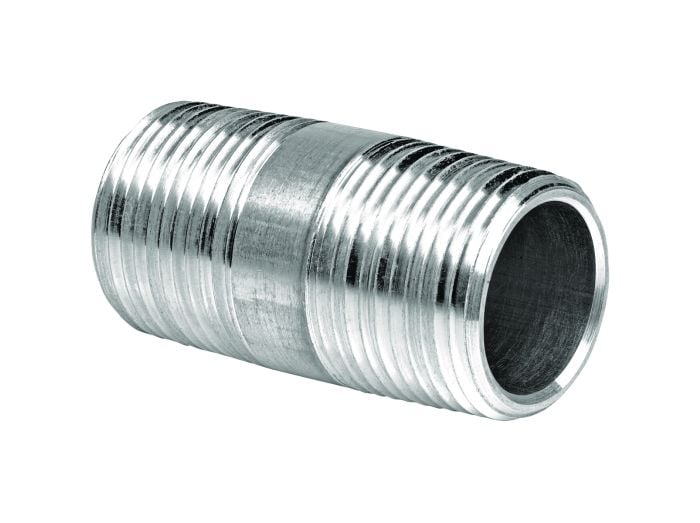

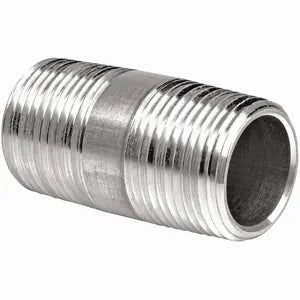

Killark AN-1B Conduit Nipple 1/2 inches Aluminum

Product Description

The Killark AN-1B is a 1/2" aluminum rigid conduit nipple with tapered threads (NPT) that meet the latest UL 1203 requirements. It connects threaded rigid or IMC conduit to cast hubs on drilled and tapped conduit openings. Suitable for hazardous locations.

• Conduit Nipple Explosion Proof UL Listed
• Zinc Plated
• Used to Connect Threaded Rigid or IMC Conduit to Cast Hubs or Drilled and Tapped Conduit Openings

Product Highlights

The Killark AN-1B conduit nipple is ideal for connecting threaded conduits in demanding environments.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: AN-1B

Technical Specifications

• Catalog Number: AN-1B
• Color: Silver
• Finish Type: Natural
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: AN Series
• Type: Rigid Conduit Nipple
• UPC: 783936012025
• Height: 0.758 in
• Hub Size: 1/2"
• Length: 2 in
• Width: 0.758 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class II, Divisions 1 & 2, Groups E, F, G Class III, Divisions 1 & 2
• UL File Number: E311892
• Manufacturer: Killark
• Product Series: AN
• Family Series: Killark Fittings, AN Series
• Description: COND NIPPLE, RIGID AL 1/2 X 2in.
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Trade Size: 1/2 "
• Composition: Metallic
• Hazardous Location: Yes
• Insulated Throat: No
• Approvals: UL
