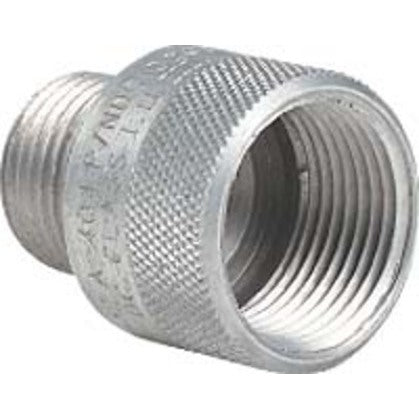

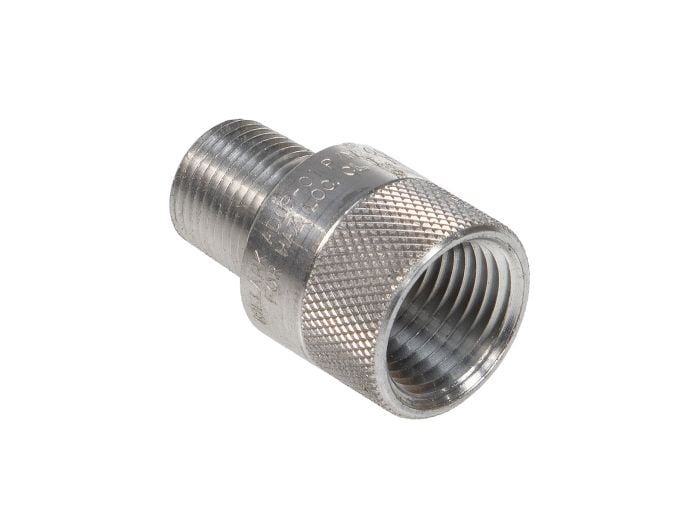

Killark ADUP-01 Adapter Male 3/8 inches - Female 1/2 inches

Product Description

The Killark ADUP-01 is an adapter with a male 3/8" connection to a female 1/2" connection, constructed from aluminum. It features tapered threads (NPT) and a smooth internal bushing to protect conductors. It is threaded for Rigid Conduit or IMC and suitable for Class I, Groups A, B, C, D applications.

• Tapered threads (NPT)
• Smooth internal bushing protects conductors
• Threaded for Rigid Conduit or IMC

Product Highlights

The Killark ADUP-01 adapter facilitates reducing the trade size of tapped holes, with a smooth internal bushing that protects conductors.

Product Information

Standard Information

• Brand: Killark
• Manufacturer Part Number: ADUP-01
• Country of Origin: China

Technical Specifications

• Application: Series ADUP suitable for Class I, Groups A, B, C, D.
• Catalog Number: ADUP-01
• Color: Silver
• Finish Type: Natural
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: ADUP Series
• Type: Adapter
• UPC: 783936009018
• Height: 1 in
• Hub Size: Male: 3/8" Female: 1/2"
• Length: 1.62 in
• Width: 1 in
• ATEX File Number: 13ATEX1196U
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G
• IECEx File Number: 13.0073U
• UL File Number: E10514
• Manufacturer: Killark
• Family Series: Killark Fittings
• Description: Adapter, 3/8in. Male - 1/2in. Female
• Connection Type: Male/Female
• External Thread: 3/8 NPT
• Internal Thread: 1/2 NPT
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
• Diameter: 1/2 in, 3/8 in
• MPN: ADUP-01
• Country of Origin: China
