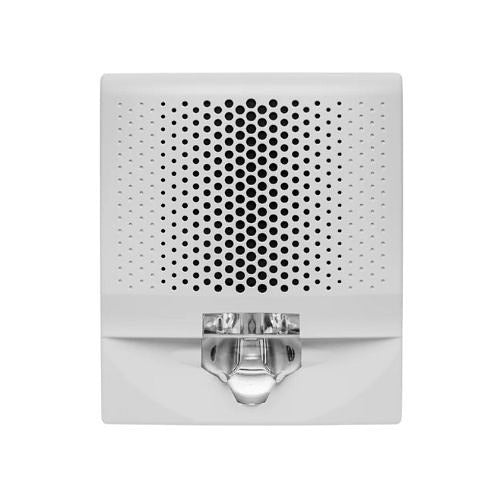

Kidde Edwards EG4LFVWF Wall Horn Strobe 15-110cd

Product Description

The KIDDE EDWARDS EG4LFVWF is a wall-mount horn and strobe combination device designed for fire alarm notification systems. It delivers both audible and visual alerting in a single unit, with a strobe output range of 15 to 110 candela (cd) and a low-frequency horn tone. Low-frequency audible output is specifically suited for occupants who may not respond to standard high-frequency tones, making this device appropriate for sleeping areas and applications where code compliance requires enhanced audibility. Licensed fire alarm technicians and life-safety contractors are the typical installers for this class of device.

This device is intended for wall-mount installation in commercial and residential fire alarm systems where a combined horn and strobe notification appliance is required. The low-frequency horn output makes it well-suited for hotel guest rooms, dormitory sleeping areas, and other occupancies governed by codes requiring low-frequency alarm tones. It is sold as a single unit and categorized under sound and strobe notification appliances.

Key Features

• Combined horn and strobe in a single wall-mount housing
• Strobe output range of 15 to 110 cd for flexible candela selection
• Low-frequency horn tone for enhanced audibility in sleeping areas
• Suitable for applications requiring code-compliant low-frequency notification
• Sold individually as a single unit

Compatibility

Designed as an OEM-style notification appliance for use with compatible fire alarm control panels and notification appliance circuits in commercial and residential life-safety systems.

Installation Notes

Installation must be performed by a licensed fire alarm technician in accordance with NFPA 72 and all applicable local codes. Disconnect and lock out power to the notification appliance circuit before wiring or servicing the device. Verify system voltage and current draw against panel capacity before commissioning. Do not install in environments outside the device's rated conditions.
