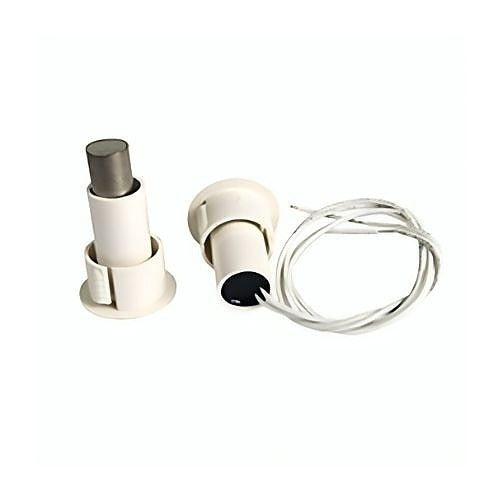

Kidde - Edwards 1076CH-N Recessed Steel Door Contact

Product Description

The KIDDE - EDWARDS 1076CH-N is a recessed steel door contact with a single-pole double-throw (SPDT) switching configuration, designed for use in security and fire alarm detection systems. The unit mounts flush into door frames or structural steel assemblies, keeping the contact concealed for a clean, tamper-resistant installation. Its white finish blends with standard door frames and trim. Licensed security and fire alarm technicians install this device as part of supervised loop circuits where door position monitoring is required. The SPDT output allows the contact to drive both normally open and normally closed circuit paths, providing flexibility in panel wiring configurations.

This recessed door contact is suited for commercial and light industrial applications where a steel door or steel frame is present. Typical install scenarios include entry and exit doors in access control systems, fire alarm door monitoring circuits, and intrusion detection perimeter loops. The recessed design minimizes physical exposure of the contact body, reducing the risk of mechanical damage in high-traffic doorways. It is sold and packaged as a single unit (EA, QTY 1).

Key Features

• Recessed mounting profile for tamper-resistant, low-profile installation in steel door assemblies
• SPDT switching configuration supports both normally open and normally closed circuit wiring
• Steel construction provides durability in commercial door frame applications
• White finish for aesthetic compatibility with standard door frame finishes
• Single-unit packaging for individual replacement or new installation

Compatibility

Designed as an OEM-style recessed door contact for use in steel door and frame assemblies within security, access control, and fire alarm detection systems.

Installation Notes

Installation is typically performed by licensed security, fire alarm, or low-voltage electricians in accordance with NFPA 72 and applicable local codes. Power down and de-energize the alarm or access control panel loop before wiring or replacing this contact. The recessed body requires drilling or routing a cavity into the door frame to the specified depth; verify frame material and cavity dimensions before installation. Do not force the contact body into an undersized hole, as this can damage the switching mechanism.
