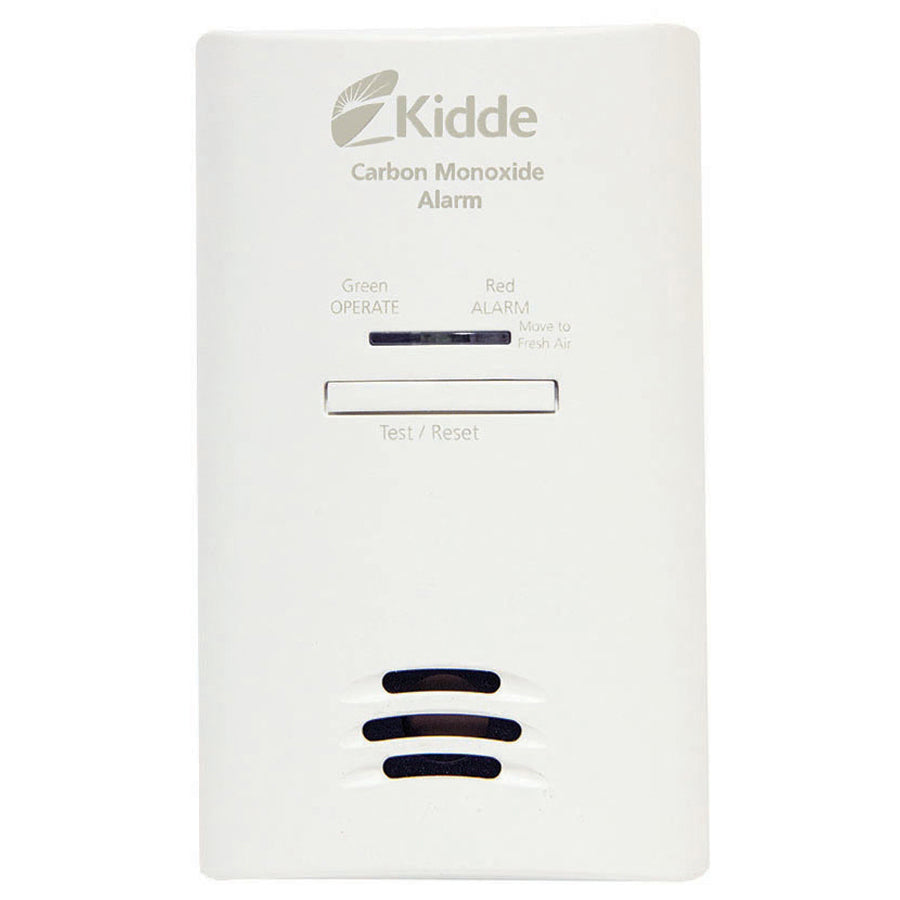

Kidde 900-0263 Carbon Monoxide Alarm Plug-in 85 Db

Product Description

The KIDDE 900-0263 is a plug-in carbon monoxide alarm designed for residential use, powered by 120 volts AC at 60 Hz with a two AA battery backup system. It uses an electrochemical sensor to detect CO concentrations and sounds an 85 dB alarm when dangerous levels are present. The unit draws 60 milliamps during normal operation and features a green LED to confirm active power and a red LED that illuminates when the alarm triggers. Licensed electricians and general contractors typically handle installation, though the plug-in design makes it accessible for direct outlet mounting without tools.

This alarm is suited for residential installations in locations required by local codes, including bedrooms, hallways, and common living areas. The plug-in format allows placement at standard outlet height, which is appropriate for detecting CO from combustion appliances such as furnaces, water heaters, and attached garages. The tamper-resist feature activates an alarm condition if the unit is unplugged or comes loose from the outlet, helping maintain protection in occupied spaces.

Key Features

• 85 dB horn at 10 feet meets audibility requirements for residential CO detection
• Two AA battery backup maintains protection during power outages
• Electrochemical sensor provides accurate CO concentration detection
• Event memory records CO concentrations of 100 PPM or greater, indicated by green LED flashing every 10 seconds
• Low battery hush silences chirp warning for up to 12 hours without requiring immediate battery replacement
• Battery pull tab eliminates battery installation time at setup
• Test/Reset button allows functional verification and alarm reset

Compatibility

Designed as an OEM-style plug-in CO alarm for residential applications requiring 120 volt AC outlet-mounted carbon monoxide detection with battery backup.

Installation Notes

Installation should follow NFPA 720 and any applicable local codes governing CO alarm placement. Power down is not required for plug-in installation, but the outlet should be confirmed live and uncontrolled by a wall switch before mounting. Do not install in locations subject to extreme temperature, humidity, or airflow that could affect sensor performance. Test the unit immediately after installation using the Test/Reset button to confirm proper operation.

Technical Specifications

• Voltage Rating: 120 volts AC, 60 Hz
• Backup Power: 2 AA batteries
• Current Draw: 60 milliamps
• Alarm Sound Level: 85 dB at 10 feet
• Sensor Type: Electrochemical
• Operation Type: AC Powered with battery backup
• Height: 7.1 inches
• Length: 6.3 inches
• Width: 12.2 inches
• Weight: 4.75 pounds
• Approval: UL

Standard Information

• Brand: KIDDE
• Manufacturer Part Number: 900-0263
