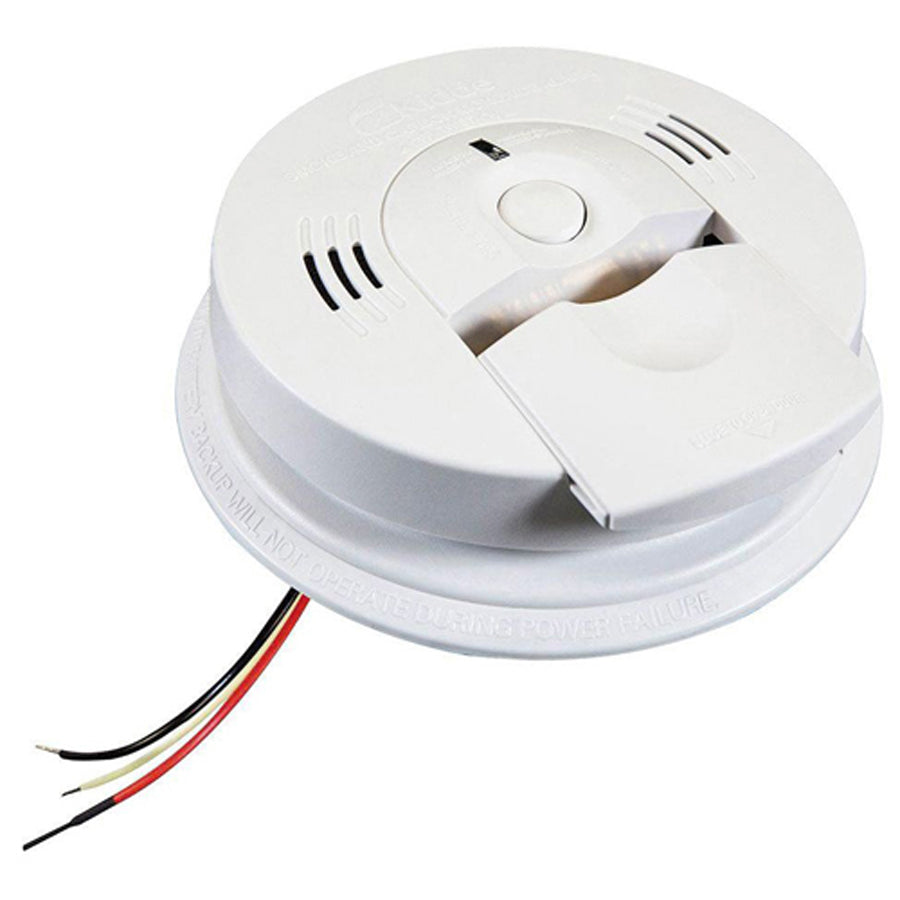

Kidde 900-0114-A Hardwired Co Smoke Alarm 120VAC 85db

Product Description

The KIDDE 900-0114-A is a hardwired combination carbon monoxide and smoke alarm designed for permanent residential installation. It operates on 120 VAC at 60 Hz with alkaline battery backup to maintain protection during power outages. The electrochemical CO detection technology provides reliable sensing, and the integrated 85 dB horn at 10 feet delivers a loud, clear alert. A sealed sensor cover protects the detection cell from contaminants prior to and during installation, reducing nuisance trips. Licensed electricians and fire-safety contractors typically install this unit as part of a whole-home interconnected alarm network.

This alarm is suited for residential and light commercial applications where hardwired CO and smoke detection is required by code. The unit supports up to 24 interconnected devices, allowing an entire structure to sound simultaneously when one alarm triggers. An adjustable mounting bracket simplifies ceiling or wall placement and allows fine alignment without additional hardware. The tamper-resistant locking feature deters unauthorized removal of the battery or alarm unit, which is useful in rental and multi-family settings.

Key Features

• Electrochemical CO detection with integrated smoke sensing in a single unit
• 120 VAC hardwired operation with alkaline battery backup for continuous coverage during outages
• 85 dB horn output measured at 10 feet for reliable audible alerting
• Supports up to 24 interconnected alarms for whole-building notification
• Adjustable mounting bracket for fast installation and precise alignment
• Sealed sensor cover protects the CO cell from contaminants prior to installation
• Tamper-resistant lock deters battery and alarm removal

Compatibility

Designed as an OEM-style hardwired replacement or new-installation combination CO and smoke alarm for residential and light commercial structures requiring interconnected detection systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 72 and all applicable local codes. Shut off the circuit breaker supplying the wiring branch before making any wire connections. Follow the manufacturer wiring diagram included with the unit for proper line, neutral, and interconnect lead terminations. Test the alarm using the Test/Reset button after installation to verify CO circuit operation and interconnect function.

Technical Specifications

• Voltage Rating: 120 VAC 60 Hz
• Horn Output: 85 dB at 10 feet
• Detection Technology: Electrochemical
• Wiring Type: Hardwired with battery backup
• Maximum Interconnections: 24 devices
• Diameter: 5.6 inches
• Depth: 1.8 inches
• Certifications: UL 2034, UL 217

Standard Information

• Brand: KIDDE
• Manufacturer Part Number: 900-0114-A
