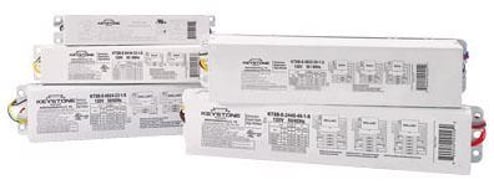

KeyStone Technologies KTSB-E-1232-24-UV-S-IP Electronic Sign Ballast 120 Voltage

Product Description

The KeyStone Technologies KTSB-E-1232-24-UV-S-IP is an electronic sign ballast designed for two to four lamps. It supports T8HO or T12HO lamp types with a combined lamp length ranging from eight to thirty-two feet. The input voltage for this ballast is one hundred twenty volts, suitable for various electronic signage applications.

• Supports 2-4 lamps
• Works with T8HO or T12HO lamps
• Input voltage of 120VAC

Product Highlights

This electronic ballast is ideal for large signage installations where efficient power management is crucial. It offers reliable starting and operation in various conditions, making it suitable for both commercial and industrial use.

Product Information

Standard Information

• Manufacturer: Keystone Technologies
• Brand: KeyStone Technologies

Technical Specifications

• Part Number: KTSB-E-1232-24-UV-S-IP
• Combined Lamp Length: 8 feet to 32 feet
• Voltage Rating: 120 V
• Starting Method: Rapid Start
• Sound Rated: A
• Minimum Starting Temperature: -20 degrees Fahrenheit
• Maximum Case Temperature: 194 degrees Fahrenheit
• UL, cUL Listed: Yes
• Mounting Dimensions: 14.44 inches Length, 3.20 inches Width, 2.73 inches Height
