Keystone Technologies KT-RKIT-SP-W-82-C4-4LED-DP 8ft 4-Lamp Strip Kit for Type B T8 LED Tubes 25W Pack 5 Replaces KTRKITSPW82C44LEDDP

Product Description

The Keystone Technologies KT-RKIT-SP-W-82-C4-4LED-DP is an 8ft pre-wired strip retrofit kit designed for use with Keystone Single-Ended Wiring (Type B) LED T8 tubes. This kit provides a seamless retrofit solution for highbay, lowbay, warehouse, and general indoor lighting applications, operating on 120-277V. It requires four single-ended direct wire LED T8 tubes, sold separately, with a maximum lamp wattage of 25W per lamp.

• Designed for Type B LED T8 tubes, compatible with single-ended wiring direct drive LED lamps up to 25W per lamp.

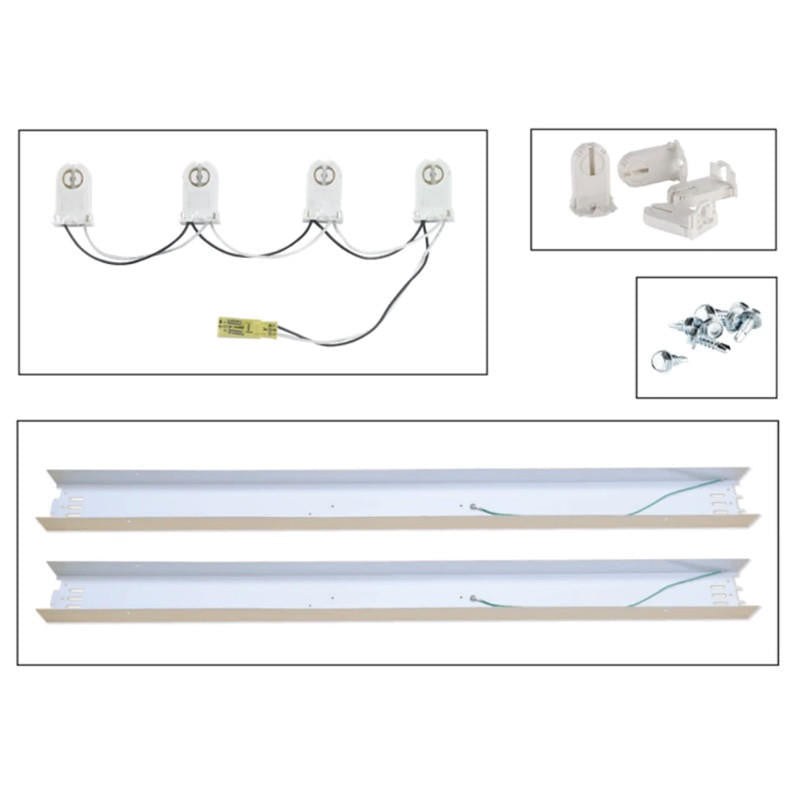

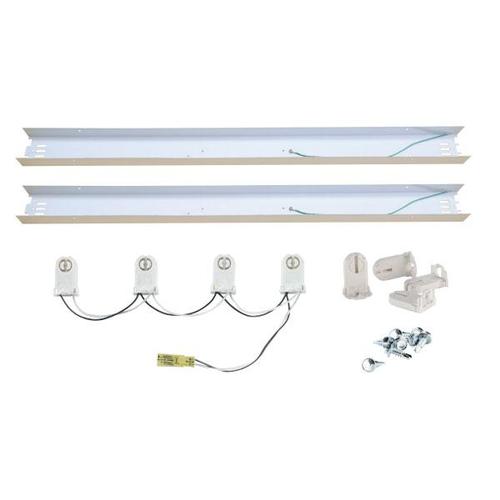

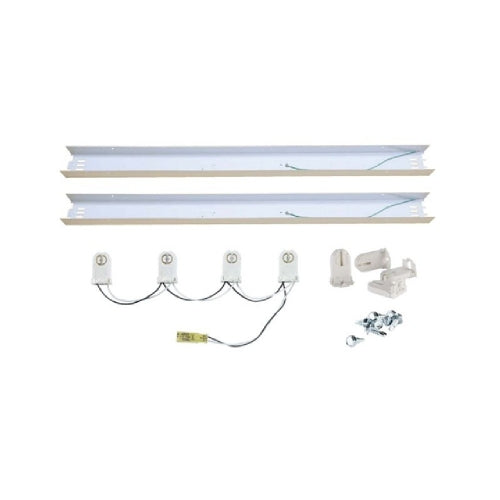

• Pre-wired for quick installation, including a factory-installed wiring harness and four pre-wired sockets.
• Suitable for 8ft strip fixture retrofits in industrial, commercial, and warehouse settings, and is damp location rated.

Product Highlights

This 8ft 4-lamp strip retrofit kit offers streamlined installation for Type B LED T8 tubes in 120-277V applications.

Product Information

Standard Information

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KT-RKIT-SP-W-82-C4-4LED-DP

Technical Specifications

• Model: KT-RKIT-SP-W-82-C4-4LED-DP
• Fixture Compatibility: 8ft strip fixtures with widths close to 4.25"
• Input Voltage: 120-277V
• Maximum Lamp Wattage: 25W per lamp
• Ballast Compatibility: Not required (for use with direct-wire Type B LED tubes)
• Damp Location Rating: Yes
• Certifications: UL Valid only when using Keystone LED lamps, RoHS Compliant
• Material: Pre-assembled ballast covers with pre-installed wiring
• Mounting Hardware Included: Yes
• EZ Code: DAU-17
• Lamp(s) Included: Sold Separately
• Lighting Technology: LED Ready
• Pack: 5
• Connection Type: Direct Wire
