Keystone Technologies KT-RKIT-CP-8-2200 20W 8in Retrofit

Product Description

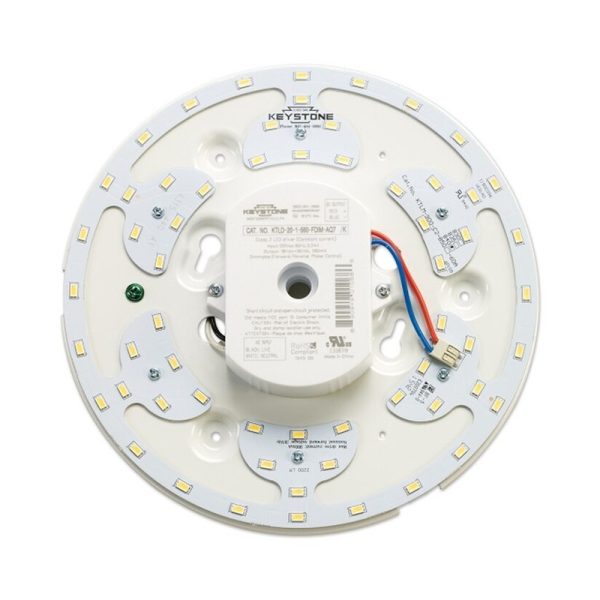

The Keystone Technologies KT-RKIT-CP-8-2200-830-FDIM is a 20W circular LED retrofit. This unit is designed to upgrade circular surface-mount fluorescent luminaires to an energy-efficient LED solution. It operates at 120V and boasts a rated life of 93,000 hours. This product is suitable for after-market or OEM installation and features phase control dimming.

• Upgrade fluorescent luminaires to LED.
• Compatible with OEM installation (requires UL LED Luminaire General Coverage file).
• Phase control dimmable for adjustable brightness.

Product Highlights

This retrofit kit provides a practical solution for converting existing lighting to energy-efficient LED, reducing energy costs and maintenance time.

Product Information

Standard Information

• Brand: Keystone Technologies
• Part Number: KT-RKIT-CP-8-2200-830-FDIM

Technical Specifications

• Watts: 20W
• Lumens: 2240
• Lumens Per Watt: 145
• Input Voltage: 120V
• Color Temperature: 3000K / 4000K / 5000K
• Dimmable: Phase Control
• Drive Current: 560mA
• Driver Efficiency: 80%
• Length (M.O.L.): 7.01 inches
• Width: 3.70 inches
• Rated Hours: 93,000
• Wet/Damp Rated: Damp Rated
• Maximum Temp: 194°F
• Warranty: 5 Year
