Keystone Technologies KT-EMRG-LED-5C-500-K1 LED emergency backup driver kit 5W KTEMRGLED5C500K1IP

Product Description

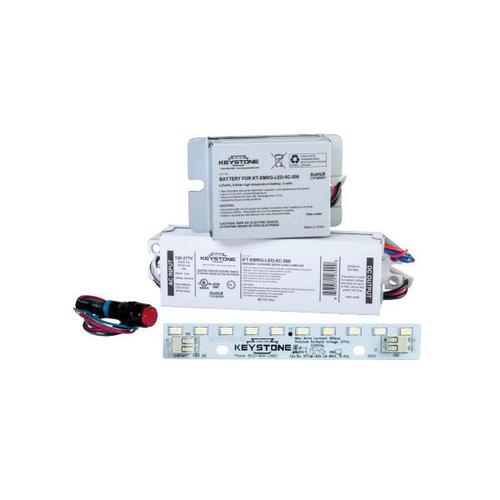

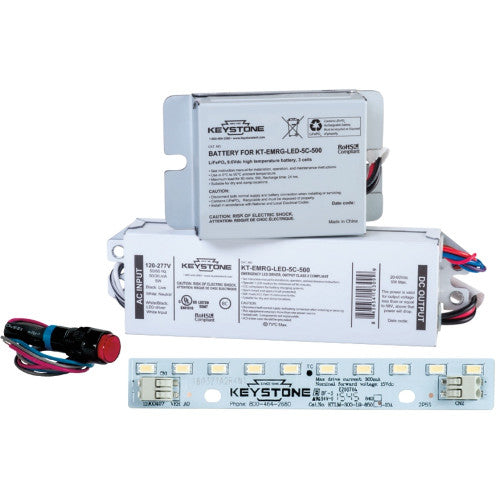

The Keystone KT-EMRG-LED-5C-500-K1 is a 5W constant power LED emergency backup driver kit designed for emergency lighting applications. It provides 90 minutes of emergency illumination during power failures, converting most LED fixtures into emergency lights. This kit operates on 120-277V universal input and includes a high-efficiency LiFePO4 battery. It is UL 924 and CEC Title 20 compliant, suitable for commercial and industrial environments.

• Provides 90 minutes of emergency illumination to meet UL 924 and CEC Title 20 compliance.
• Includes an emergency LED module for enhanced lighting performance.
• Two-piece design for easy installation in multiple fixture types.

Product Highlights

500 lumens emergency output.

Product Information

Standard Information

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KT-EMRG-LED-5C-500-K1

Technical Specifications

• Wattage: 5W
• Input Voltage: 120–277V AC
• Output Voltage Range: 20V – 60V DC
• Output Current Range: 250mA @ 20V DC, 86mA @ 58V DC
• Emergency Runtime: 90 minutes
• Power Factor: > 0.5
• Battery Type: Maintenance-Free LiFePO4, 9.6V DC (3-cell)
• Recharge Time: 24 hours
• Certifications: UL 924, CEC Title 20 Compliant, FCC Compliant, UL Listed
• Lifespan: 80,000+ hours
• Surge Protection: Over-voltage, over-current, and short-circuit protection
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Case Material: Metal
• EZ Code: NOZ-71
• Light Source: LED
• Ballast Type: Emergency
• Emergency Lumens: 500
• Driver Type: Emergency
• Current Type: Fixed
• Dimming Type: Non-Dimming
• Max. Current: 50 mA @ 120V
