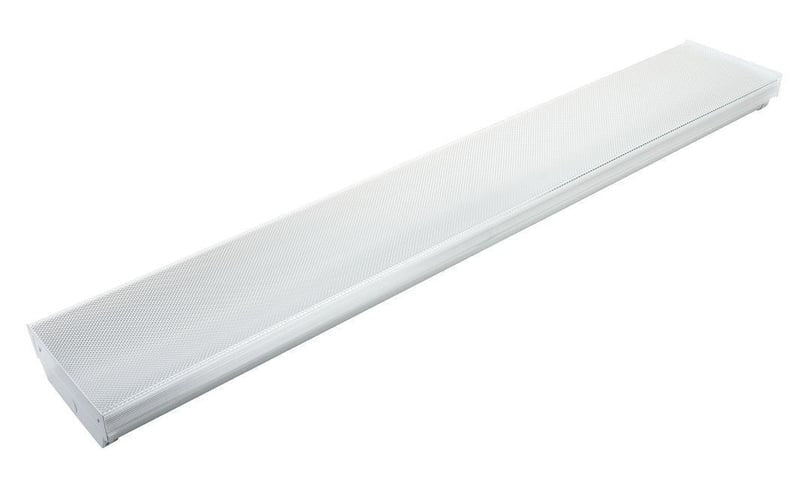

Keystone Technologies KT-DDWLEDT8-4-2L-DP 22W 4 ft 2-Lamp Wrap Fixture

Product Description

Keystone Technologies KT-DDWLEDT8-4-2L-DP is a 4 ft, two-lamp wrap fixture wired for Type B single-ended T8 LED tubes. The fixture includes pre-wired sockets for direct wire/ballast bypass installations, a prismatic-style lens to provide even light output without light leaks or shadows, and a painted steel housing for surface mounting. It accepts Keystone single-ended DirectDrive LED lamps up to 22 W per lamp and is rated for dry and damp locations.

• Pre-wired sockets for Type B single-ended (direct wire) T8 LED tubes; compatible with Keystone DirectDrive lamps
• Prismatic-style lens provides even light output without light leaks or shadows
• Surface-mount painted steel housing; accepts up to 22 W per lamp and is rated for dry and damp locations

Product Highlights

4 ft, 2-lamp Type B T8 wrap fixture with pre-wired sockets, prismatic lens, 22W max per lamp

Product Information

Standard Information

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KT-DDWLEDT8-4-2L-DP

Technical Specifications

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KT-DDWLEDT8-4-2L-DP
• Model Number: KT-DDWLEDT8-4-2L-DP
• Length: 4 ft (48 in)
• Lamp Count: 2
• Wiring: Single Ended / Direct Wire / Ballast Bypass (Type B)
• Compatible Tube Type: Type B (single-ended) LED T8 tubes
• Max Lamp Wattage: 22 W per lamp
• Lamp Type: LED
• Lamp Base Type: T8
• Socket: Pre-wired sockets
• Lens: Prismatic / prismatic-style lens
• Mounting Type: Surface
• Housing Material: Steel
• Housing Finish: Painted White
• Dimensions: 2.50 in H x 8.00 in W x 48.00 in L
• Weight: 3.00 lb
• Location Rating: Dry and damp locations
• Certifications: cUL/UL Listed, RoHS Compliant
• UPC: 843654133355
• EAN: 0843654133355
• SKU: KTBKT-DDWLEDT8-4-2L-DP
• Also Known As: 2380800
