Product Description

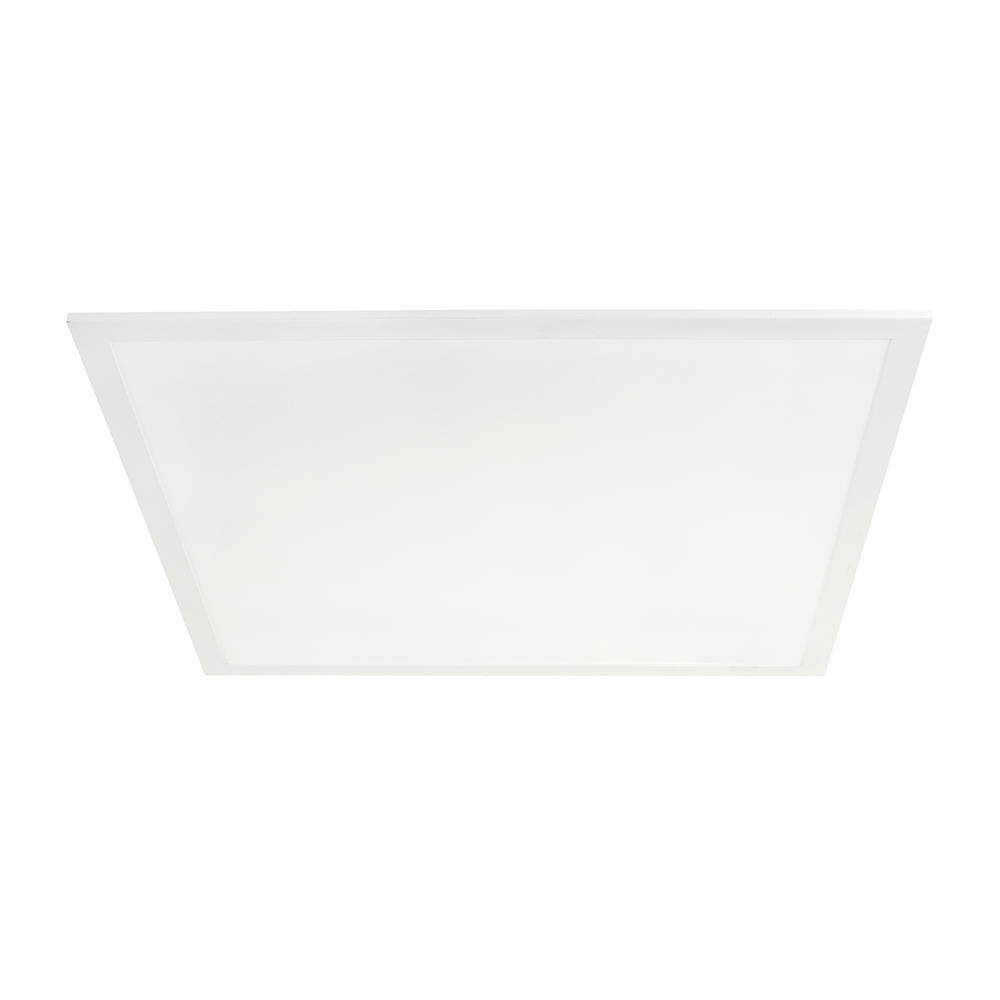

The KEYSTONE TECHNOLOGIES KT-BPLED35PS-22C-8CSA-VDIM is a 2x2 LED panel featuring Power Select and Color Select. This backlit design offers 35/ 30/ 20W, 120-277V input, and 3500/ 4000/ 5000K color temperature options with 0-10V dimming. Ideal for offices, classrooms, retail, and healthcare facilities.
- Power Select
- Color Select
- 0-10V Dimming
- Backlit Design
Product Highlights
The KT-BPLED35PS-22C-8CSA-VDIM LED panel provides unmatched flexibility by allowing installers to choose between three wattage settings and three color temperatures in a single SKU.
Product Information
Standard Information
-
Brand: KEYSTONE TECHNOLOGIES
-
Manufacturer Part Number: KT-BPLED35PS-22C-8CSA-VDIM
Technical Specifications
-
Watts: 35/ 30/ 20 W
-
Lumens: 3,950 lm
-
Color Temperature (CCT): 3500/ 4000/ 5000 K
-
Nominal Size: 2x2
-
Flat Panel Type: Back-Lit
-
Manufacturer Part Number: KT-BPLED35PS-22C-8CSA-VDIM
-
UPC: 843654156989
-
Wattage: 35 Watts
-
Input Voltage: 120-277V
-
Dimmable: 0-10V
-
Color Temperature: 3500K, 4000K, 5000K
-
Rated Hours: 50,000 Hours
-
Min Operating Temp: -4 Degrees F
-
CRI: 80+
-

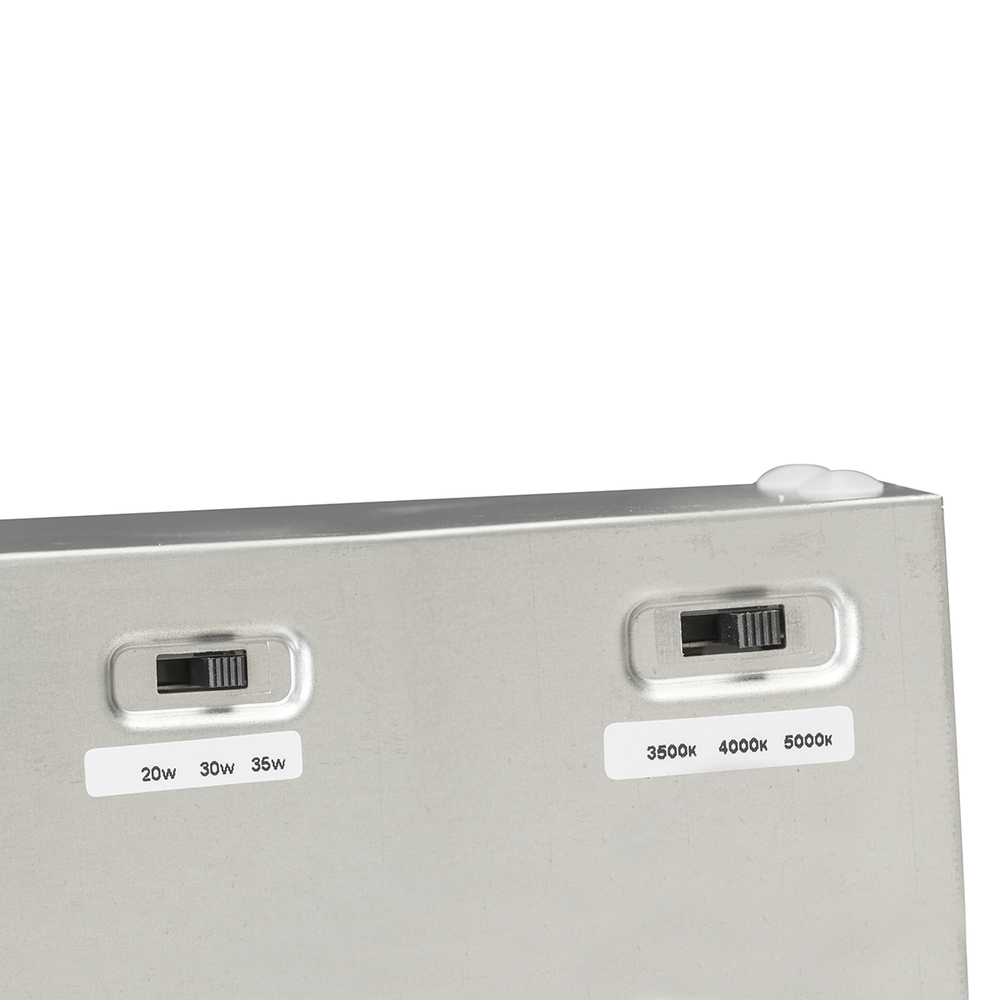

Special Features: CCT Selectable, Wattage Selectable
-
Length: 23.74"
-
Width: 23.74"
-
Height: 1.47"
-
Brand: Keystone
-
Voltage: 120-277V (Universal)
-
Dimensions: 23.74" L x 23.74" W x 1.47" H
-
Fixture Length: 24"
-
Finish: Frosted
-
Type: 0-10V Dimming
-
Light Technology: LED
-
Volts AC Range: 120 - 277
