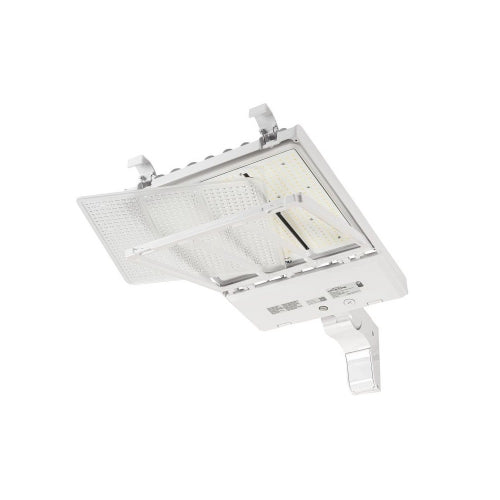

Keystone Technologies KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P-W LED Area Light 185/210/290W (Type III/IV/V)

Product Description

Keystone Technologies KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P-W is a selectable-power LED area light offering 185W, 210W, or 290W output with selectable color temperatures of 3000K, 4000K, or 5000K. The luminaire includes Type III optics installed with Type IV and V lenses included, integrated NEMA 3-pin twist-lock photocell receptacle with shorting cap, pre-installed adjustable pole mount kit, die-cast aluminum housing, U0 dark-sky performance, 0-10V dimming, and 120-277V input for outdoor area lighting.

• Power-selectable: 185W, 210W, 290W; selectable color temperatures 3000K/4000K/5000K
• Type III optics installed; Type IV and V lenses included; 0-10V dimmable
• Integrated NEMA 3-pin twist-lock photocell receptacle with shorting cap; adjustable pole mount for square or round poles

Product Highlights

Selectable power and color temperatures, multiple optic options (Type III/IV/V), NEMA 3-pin photocell receptacle, 120-277V input, U0 dark-sky design

Product Information

Standard Information

• Brand: KEYSTONE TECHNOLOGIES
• Manufacturer Part Number: KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P-W

Technical Specifications

• Brand: Keystone Technologies
• Manufacturer Part Number: KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P-W
• Catalog Number: KT-ALED290PS-L2-OSB-PMA-8CSB-VDIM-P-W
• Wattage: Selectable 185W / 210W / 290W
• Input Voltage: 120-277V
• Color Temperature: 3000K, 4000K, 5000K
• CRI: 80
• Lumens: 27,300 lm; 28,980 lm
• Efficacy: 151 lm/W
• Rated Life: 50,000 hours
• Dimmable: Yes (0-10V)
• Beam Angle: Type III installed; Type IV and Type V included
• Optics: Selectable optics B (Type III, IV, V)
• Photocell Receptacle: Integrated NEMA 3-pin twist-lock with shorting cap
• Mounting Type: Pre-installed adjustable pole mount kit for square or round poles
• Housing Material: Die-cast aluminum with enhanced heat sinking
• Dark-sky Rating: U0 (dark-sky friendly)
• Certifications: cUL/UL Listed; DLC Premium; RoHS Compliant; FCC
• Weight: 17.53 lb
• UPC: 843654153131
• Housing Series: Series 2 large housing
• Item Number: 2232560
