Keystone Technologies HPS-50R-1-KIT 50W High Pressure Sodium Ballast Kit

Product Description

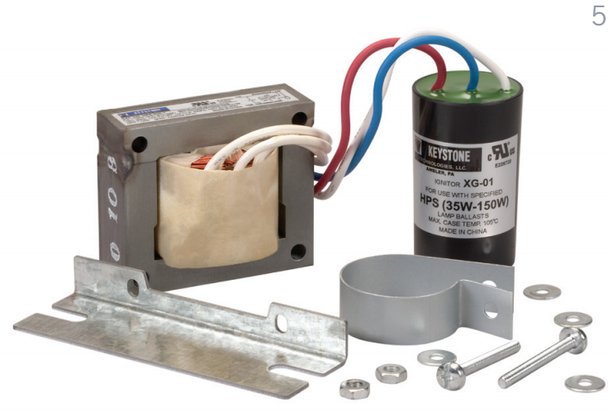

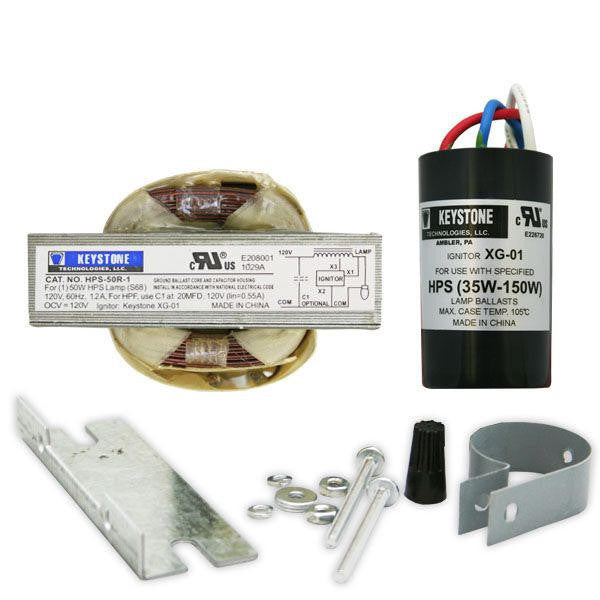

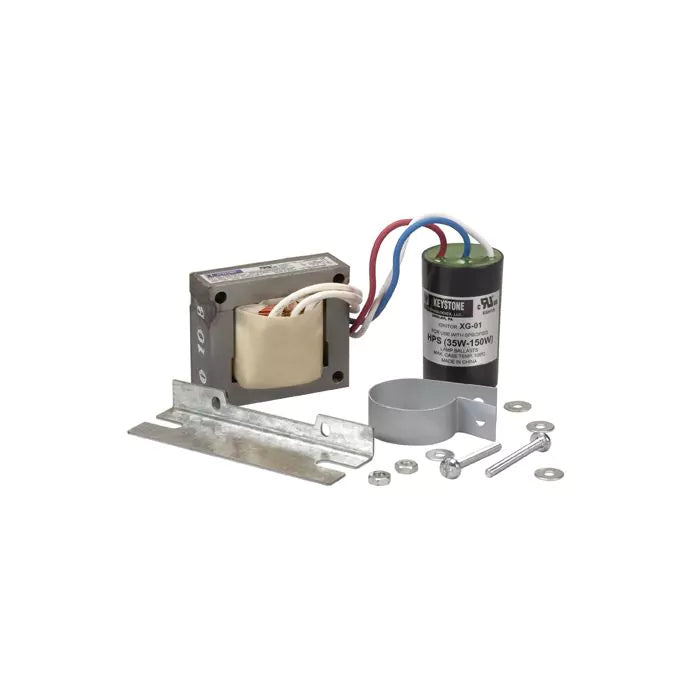

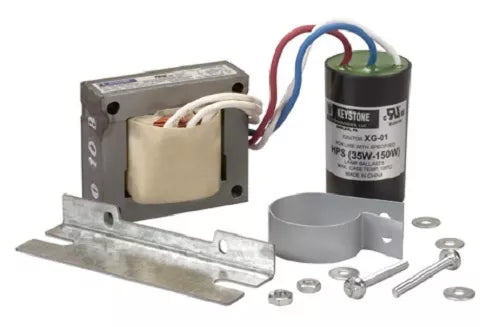

The Keystone Technologies HPS-50R-1-KIT is a 50W high-pressure sodium ballast kit. It is designed for use with S68 HPS lamps and operates on a 120V input voltage. This kit includes a ballast, ignitor, mounting brackets, and necessary mounting hardware suitable for HID lighting applications. It operates reliably without needing a capacitor for lower wattages, with an optional capacitor available.

• Compatible with 50W S68 high-pressure sodium lamps.
• Features R-NPF/R-HPF circuit type.
• Includes ballast, ignitor, and mounting hardware.

Product Highlights

This ballast kit provides dependable performance, ideal for various lighting setups.

Product Information

Standard Information

• Brand: Keystone Technologies
• MPN: HPS-50R-1-KIT

Technical Specifications

• ANSI Designation: S68
• Lamp: 50W HPS
• Input Voltage: 120V
• Frequency: 60 Hz
• Watts: 50
• Circuit Type: R-NPF/R-HPF
• Agency Certification: RU, cRU
• Insulation Class: 180°C
• Minimum Starting Temp: -20°F/-30°C
• Included: Pre-Wired Ballast, Ignitor, Mounting Brackets, Mounting Hardware
• Warranty: 2 Years
• Energy Certification: RoHS
• Start Method: Probe Start
• Regulation: 5%
• Recommended Fuse (A): 8/5
• Maximum Distance to Lamp: 3 FT
• UPC: 0890949001684
• Height: 1.81 inches
• Length: 2.25 inches
• Width: 2.64 inches
