Keystone Technologies 113SHPTP Magnetic CFL Ballast

Product Description

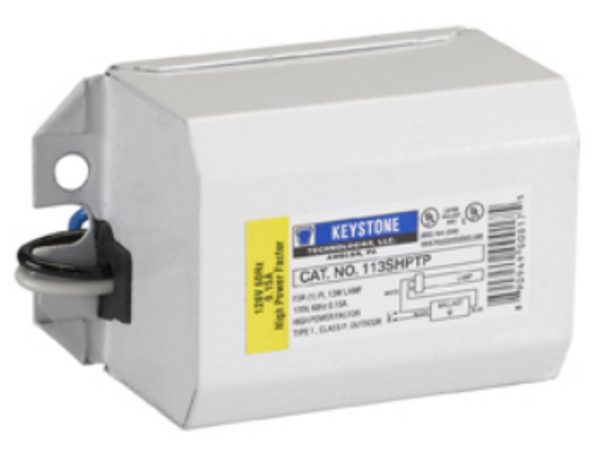

The Keystone Technologies 113SHPTP is a magnetic ballast for compact fluorescent lamps. It operates on a one hundred twenty volts input and is compatible with single thirteen watt two-pin lamps with GX23 bases. This ballast features preheat start operation and thermal protection. It meets sound ratings of Class A and is UL and cUL 935 listed for outdoor usage.

• Operates one thirteen watt compact fluorescent lamp.
• Preheat start operation.
• Thermal protection included.

Product Highlights

This ballast is suitable for compact fluorescent lighting, ensuring reliable performance in various environments.

Product Information

Standard Information

• Manufacturer Part Number: 113SHPTP
• Ballast Type: Electromagnetic Compact Fluorescent

Technical Specifications

• Input Voltage: 120V
• Lamps Operated: (1) CFT13W/GX23 or CFQ13W/GX23
• Starting Method: Preheat
• Ballast Factor: Normal
• Sound Rated: A
• Dimensions: 3.10 inches (Length) x 1.89 inches (Width) x 1.43 inches (Height)
• Mounting: 2.75 inches
• Certifications: cUL 935 Listed, Class P, Outdoor Type 1
• Minimum Starting Temperature: 50 degrees Fahrenheit
• Maximum Case Temperature: 194 degrees Fahrenheit
• Number Of Lamps: 1
• Fixture Type: Compact Fluorescent
