Keystone MH-250A-P-KIT-3/1 Mh Ballast Kit 250W M58 5-Tap

Product Description

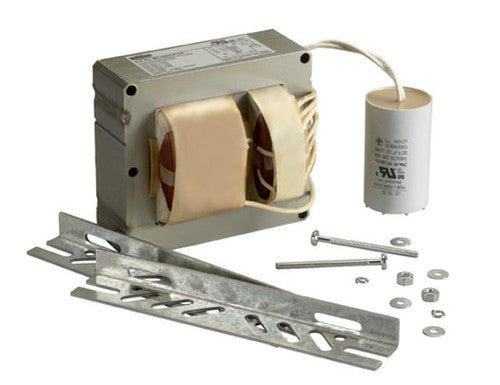

The KEYSTONE MH-250A-P-KIT-3/1 is a HID ballast kit with a 5-tap configuration. This kit includes a capacitor, mounting bracket, and hardware. It is designed for standard metal halide lamps with a wattage of 250W and is compliant with RoHS standards. The ballast features a core and coil design with a dry film capacitor and a pre-wired igniter.

• Type 5 Tap
• Contents Capacitor, Mounting Bracket and Hardware
• UL (Canada and US) Approval

Product Highlights

This kit is suitable for various applications requiring metal halide lighting and ensures reliable performance with its robust design and comprehensive component set.

Product Information

Standard Information

• Brand: KEYSTONE
• Manufacturer Part Number: MH-250A-P-KIT-3/1
• Country of Origin: CHN

Technical Specifications

• Type: 5 Tap
• Voltage Rating: 120/208/240/277/480 V
• Lamp Type: Standard Metal Halide
• Lamp Wattage: 250 W
• Circuit Type: CWA
• ANSI Code: M58
• Ballast Type: Core and Coil
• Capacitor Type: Dry Film (1.77" Dia x 3.15" H)
• Igniter Type: Pre-Wired
• RoHS Compliant: True
• Voltage Rating (Open Circuit): 308 V
• Voltage Rating (Capacitor): 400 V
• Input Current Rating: 2.5/1.5/1.3/1.1/0.6 Ampere
• Frequency Rating: 60 Hz
• Regulation: 10 Percent
• Winding Material: Copper/Aluminum
• Minimum Starting Temperature Rating: -30 Deg C
• Capacitor Temperature Rating: 90 Deg C
• Insulation Class: 180 Deg C
• Approval: UL (Canada and US)
• Model: MH-250A-P-KIT 3/1
• Line Voltage: 120/208/240/277/480 VAC ±10%
• Recommended Fuse (A): 8/5/4/3/2
• Lamp End-of-Life Protection: No
• Transient Protection: Meets ANSI/IEEE C62.41 Category A
• Meets FCC Part 18 (Class B) Consumer Limits: Not applicable
• UL, cUL Listed: RU, cRU
• Power Factor: High
• Open Circuit Voltage: 308V
• Minimum Start Temperature: -30ºC (-22ºF)
• Brand: Keystone Technologies
• Material: Copper/Aluminum
• Wattage: 250W
• Lamp Compatibility: ANSI M58 or H37 Metal Halide
